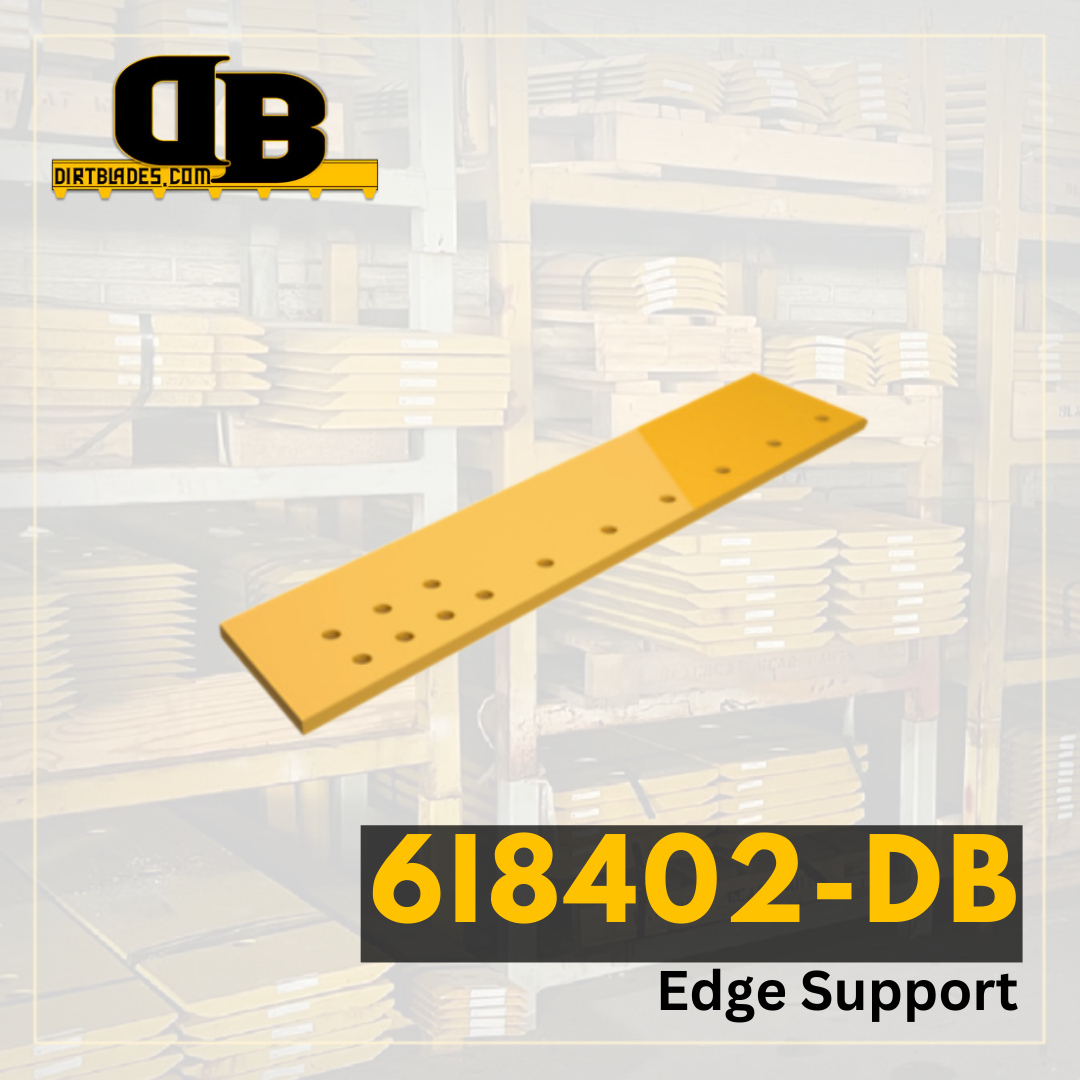

Cutting edge supports are integral parts of the blade structure to which cutting edges and end bits are bolted to. Replacement cutting edge support plates offer the same high quality materials and dimensional precision as the factory originals. Supports with severe wear or damage can lead to loose fitting end-bits and cutting edges, resulting in a loss of productivityThe primary function of the center support for a semi-universal blade is to minimize vibrations, reduce flexing, and maintain the proper alignment of the driveshaft components.
| Model Number | D8 |
|---|---|
| Series | N R T |
| Configuration | Full-U |
| Serial Number | 1JH 2WP 6AH 9CH 9WP CXB |
| Blade Position | Dozer Blade/End Bit Support |
| Blade Thickness | 1.25 |
| Blade Width | 10 |
| Blade Length | 53.275 |
| Hole Quantity | 12 |
| Bolt Diameter | 1.063 |
| First Hole Distance From End in Inches | 2.813 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 39.313 |
| Second Set of Holes Second Hole Distance From First Hole | 4 |
| Second Set of Holes Third Hole Distance From Second Hole | 4 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
