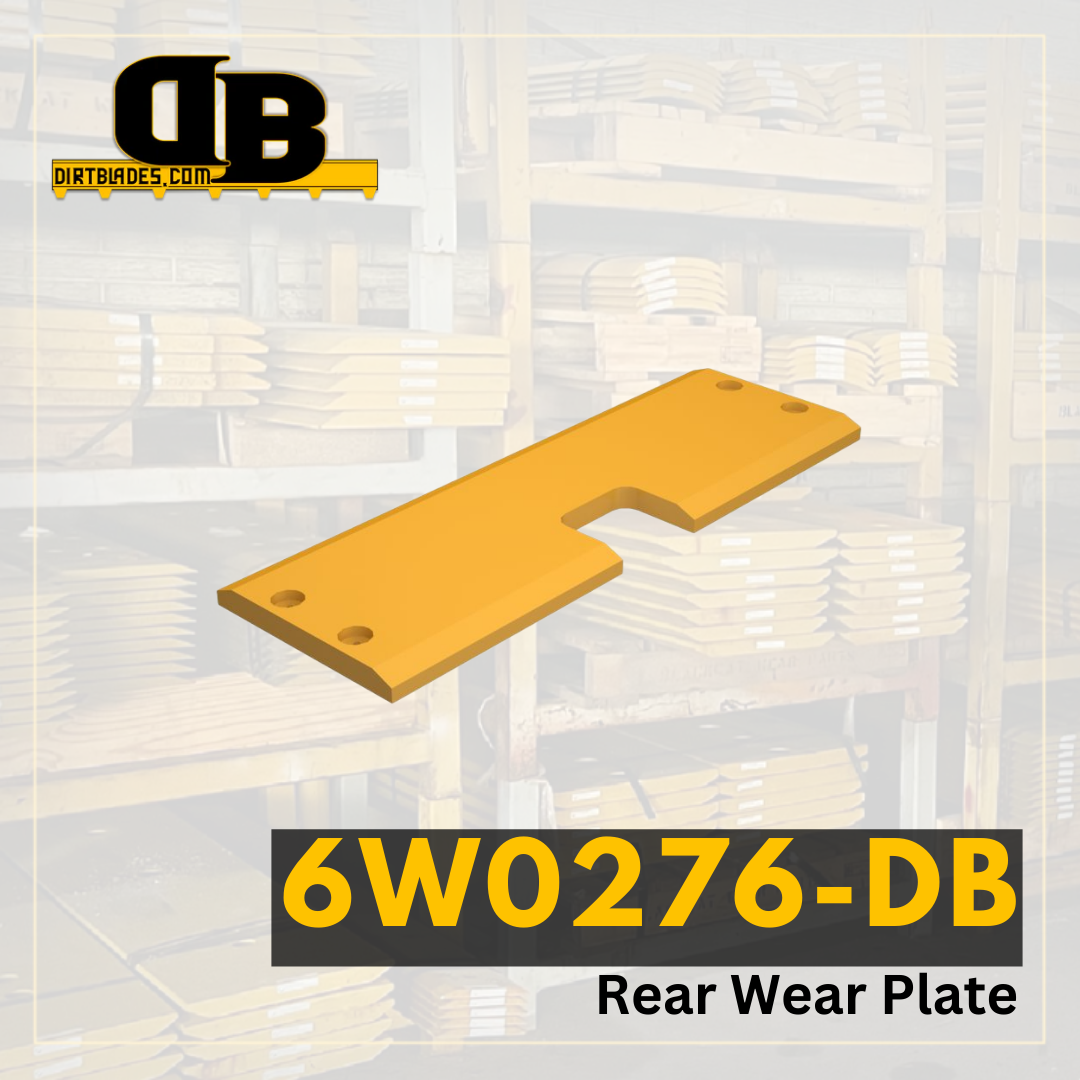

6W0276-DB | Rear Wear Plate

SKU: 6W0276
Regular price $740.64

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.

Model Number 992
Series Number C
Configuration Spade Nose Rock
Serial Number 3V6623 3V6625
Blade Position Rear Wear Plate
Blade Thickness 1.25
Blade Width 13
Blade Length 38.625
Hole Quantity 4
Bolt Diameter 1
First Hole Distance From End in Inches 1.313
Second Hole Distance From First Hole in Inches 36
Third Hole Distance From Second Hole in Inches 0
Bolt Quantity for First Row of Holes 2
Bolt Length for First Row of Holes 3.5
Bolt Quantity for Second Row of Holes 2
Bolt Length for Second Row of Holes 3.5
Second Set of Holes First Hole Distance From End 1.31
Second Set of Holes Second Hole Distance From First Hole 36
Second Set of Holes Third Hole Distance From Second Hole 0
