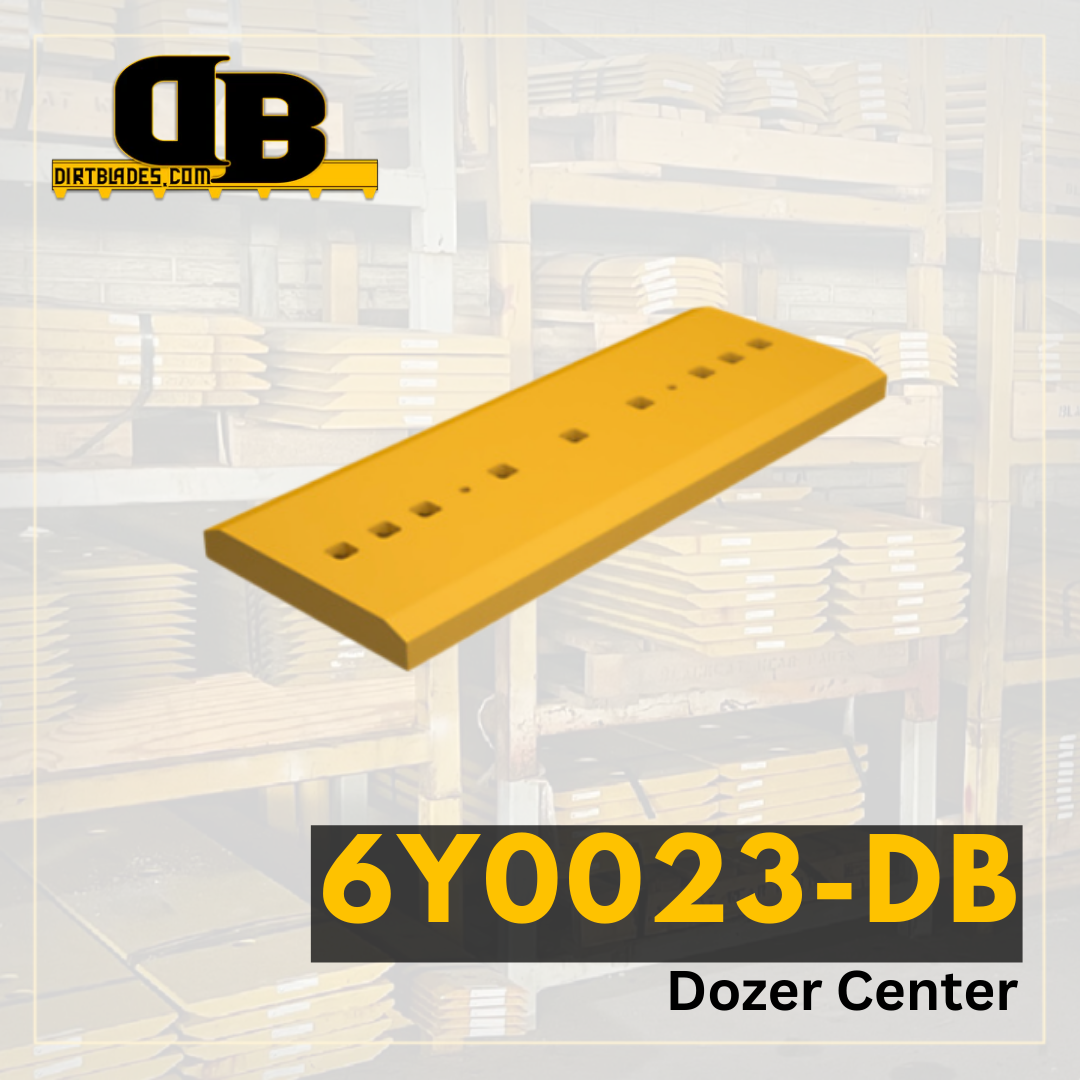

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 962 |
|---|---|
| Series Number | G |
| Configuration | General Purpose |
| Serial Number | 1916974 1473681 2274373 3680522 3699044 1669065 1780057 |
| Blade Position | Base Edge With Segment Holes |
| Blade Thickness | 1.5 |
| Blade Width | 11.811 |
| Blade Length | 125.709 |
| Hole Quantity | 30 |
| Bolt Diameter | 1.375 |
| First Hole Distance From End in Inches | 5.256 |
| Second Hole Distance From First Hole in Inches | 7.992 |
| Third Hole Distance From Second Hole in Inches | 5.118 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 13.11 |
| Second Set of Holes Second Hole Distance From First Hole | 115.186 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
