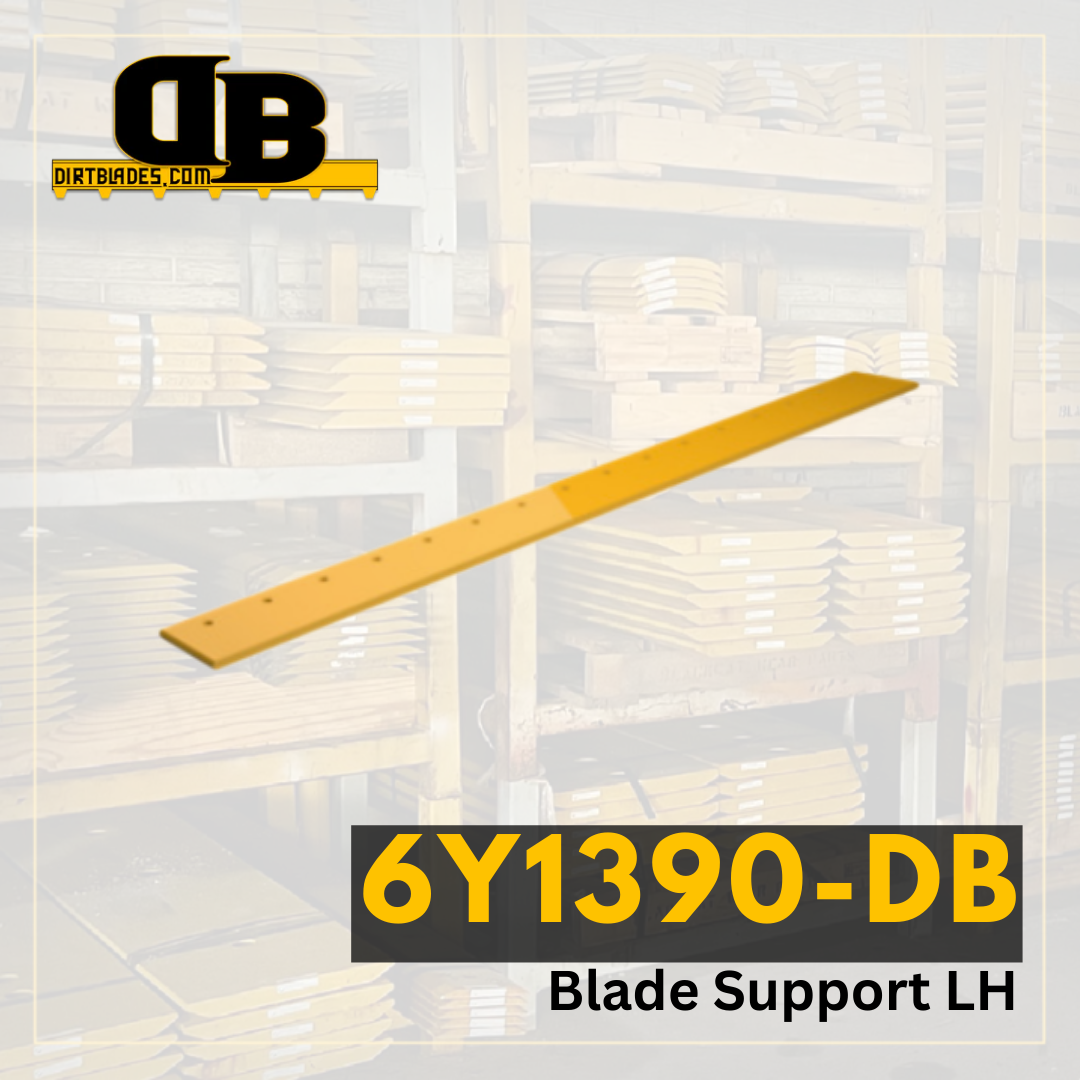

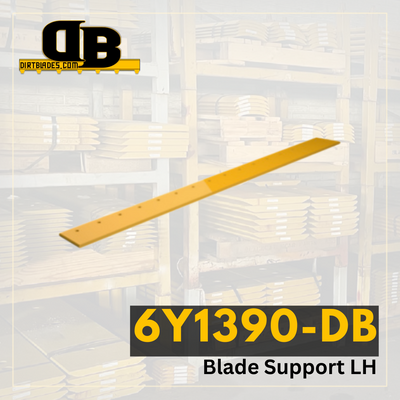

6Y1390 | Blade Support LH

SKU: 6Y1390-8

Call for pricing - 870-536-0402

Cutting edge supports are integral parts of the blade structure to which cutting edges and end bits are bolted to. Replacement cutting edge support plates offer the same high quality materials and dimensional precision as the factory originals. Supports with severe wear or damage can lead to loose fitting end-bits and cutting edges, resulting in a loss of productivityThe primary function of the center support for a semi-universal blade is to minimize vibrations, reduce flexing, and maintain the proper alignment of the driveshaft components.

Model Number D9
Series Number
Configuration Semi-U
Serial Number 25E 06A 21E1-831
Blade Position Heavy Duty Center
Blade Thickness 1.625
Blade Width 13
Blade Length 52.25
Hole Quantity 9
Bolt Diameter 1
First Hole Distance From End in Inches 2.125
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 9
Bolt Length for First Row of Holes 3.5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
