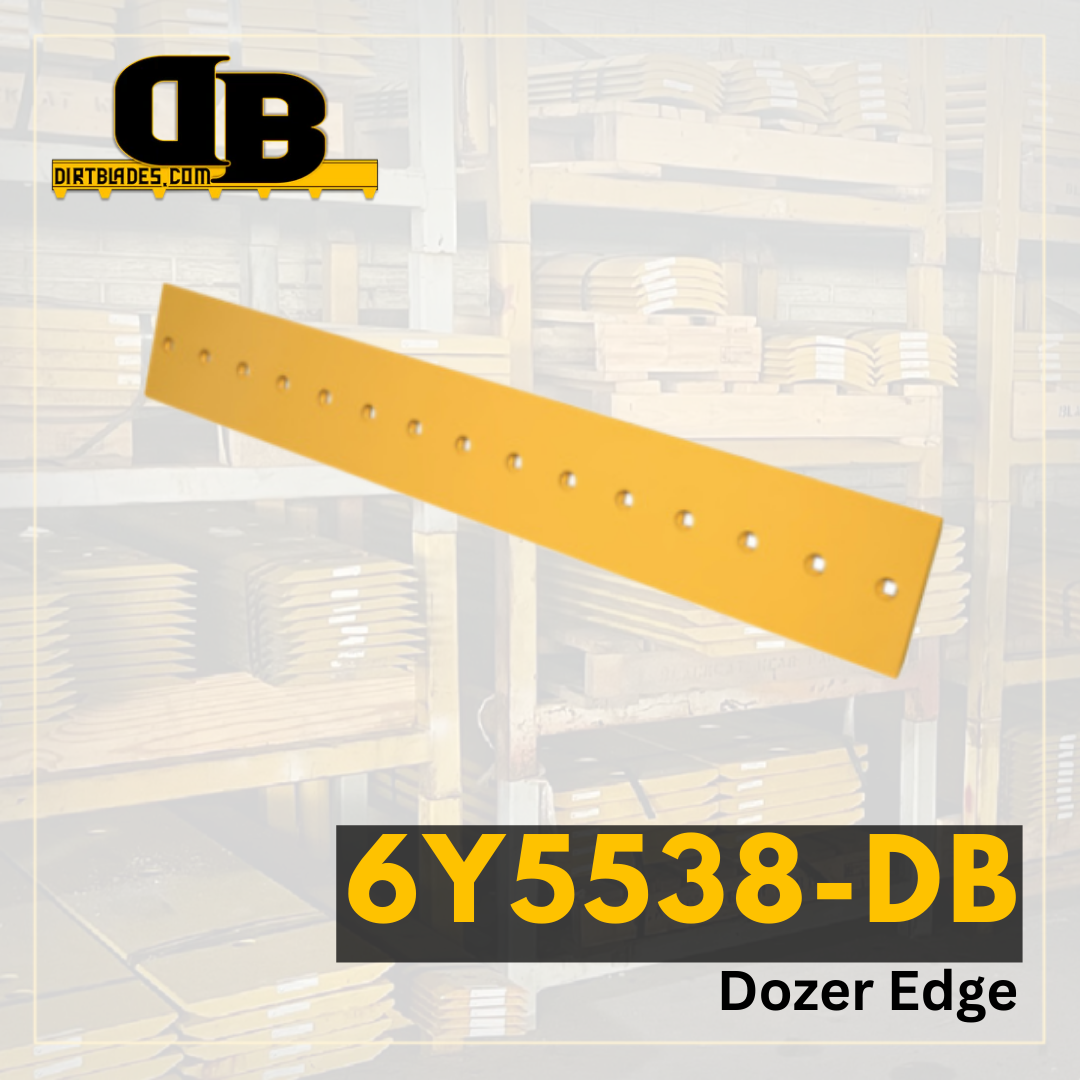

6Y5538-DB | Dozer Edge

SKU: 6Y5538
Regular price $738.60

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D9
Series Number N R T
Configuration Full-U
Serial Number 1LH 2ZH 1MP CMH CMN CMS CMW CMZ
Blade Position Center
Blade Thickness 1.125
Blade Width 13
Blade Length 89
Hole Quantity 15
Bolt Diameter 1
First Hole Distance From End in Inches 2.5
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 15
Bolt Length for First Row of Holes 3.5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
