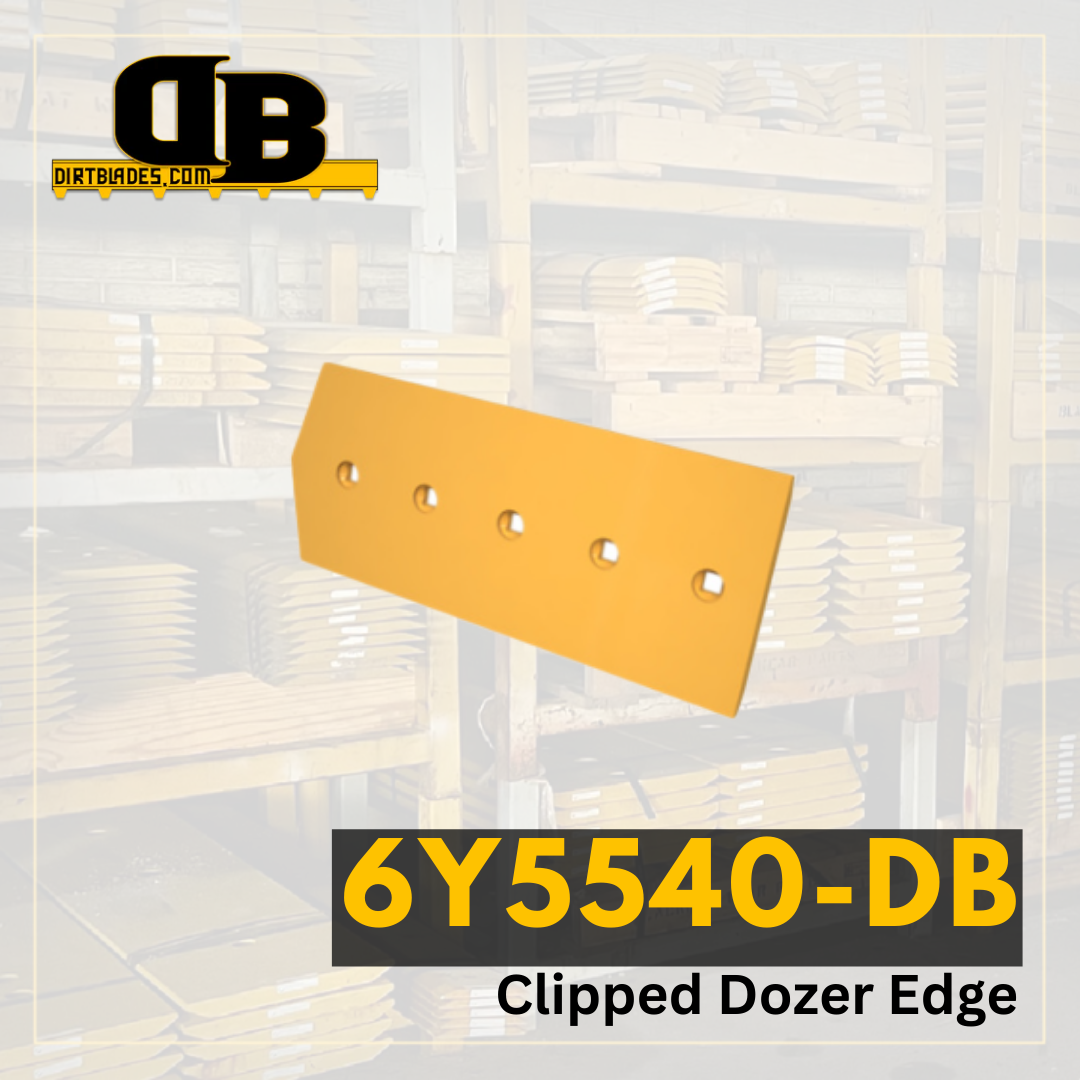

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 650 651 657 660 666 |
|---|---|
| Series Number | |
| Configuration | |
| Serial Number | 20G94-UP 23G127-UP 45M1-UP 19G222-UP 47M1-UP 18G78-UP 22G165-UP |
| Blade Position | Drop Center |
| Blade Thickness | 1.625 |
| Blade Width | 16 |
| Blade Length | 68.25 |
| Hole Quantity | 24 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 4.125 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 11 |
| Bolt Length for First Row of Holes | 3.25 |
| Bolt Quantity for Second Row of Holes | 11 |
| Bolt Length for Second Row of Holes | 3.25 |
| Second Set of Holes First Hole Distance From End | 4.125 |
| Second Set of Holes Second Hole Distance From First Hole | 6 |
| Second Set of Holes Third Hole Distance From Second Hole | 6 |
