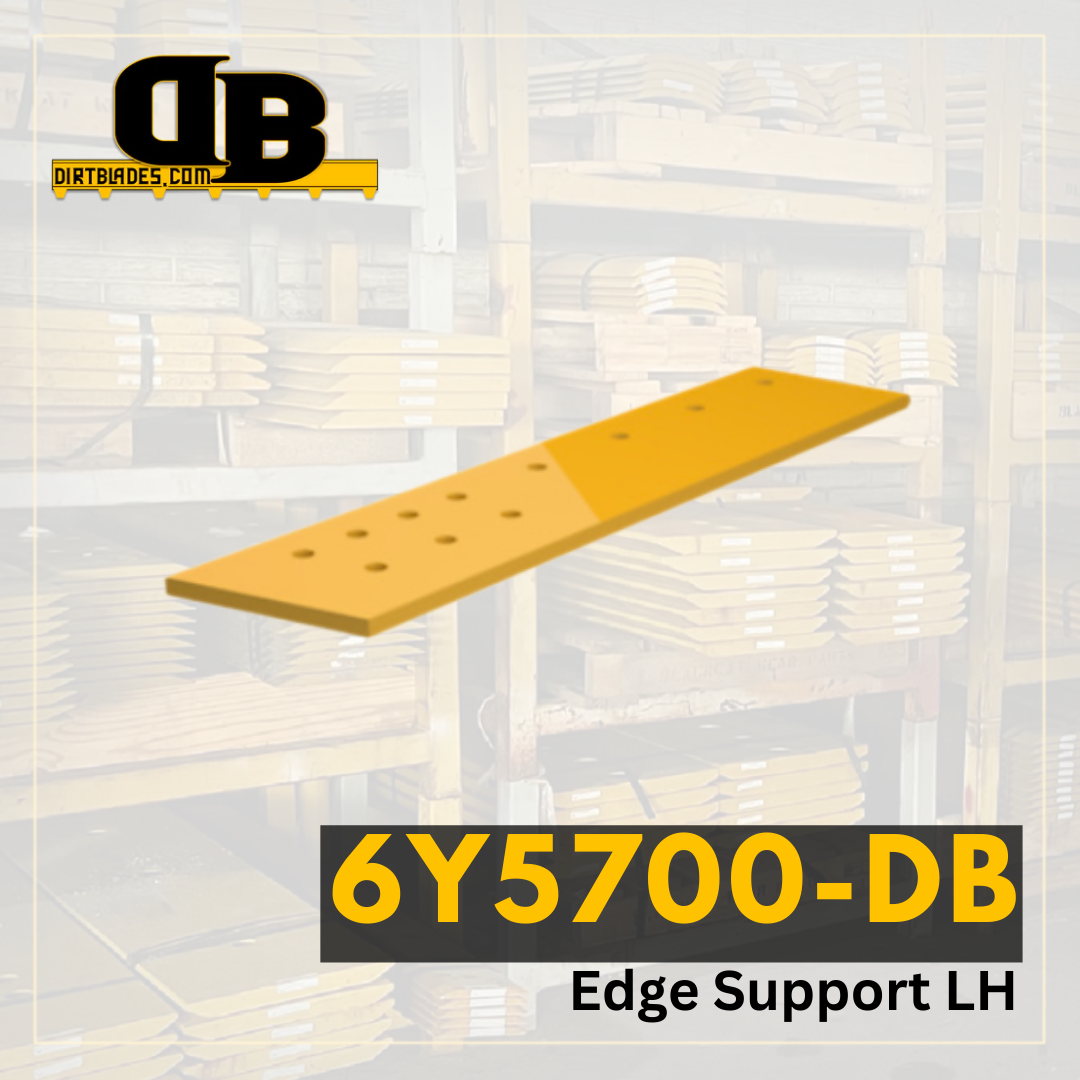

6Y5700 | Edge Support LH

SKU: 6Y5700-9

Call for pricing - 870-536-0402

Cutting edge supports are integral parts of the blade structure to which cutting edges and end bits are bolted to. Replacement cutting edge support plates offer the same high quality materials and dimensional precision as the factory originals. Supports with severe wear or damage can lead to loose fitting end-bits and cutting edges, resulting in a loss of productivityThe primary function of the center support for a semi-universal blade is to minimize vibrations, reduce flexing, and maintain the proper alignment of the driveshaft components.

Model Number 630 631 637
Series Number B C
Configuration
Serial Number 64M 11G 10G 28F 32F
Blade Position Drop Center
Blade Thickness 1.375
Blade Width 16
Blade Length 54.25
Hole Quantity 18
Bolt Diameter 1
First Hole Distance From End in Inches 3.125
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 9
Bolt Length for First Row of Holes 3.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 3.125
Second Set of Holes Second Hole Distance From First Hole 6
Second Set of Holes Third Hole Distance From Second Hole 6
