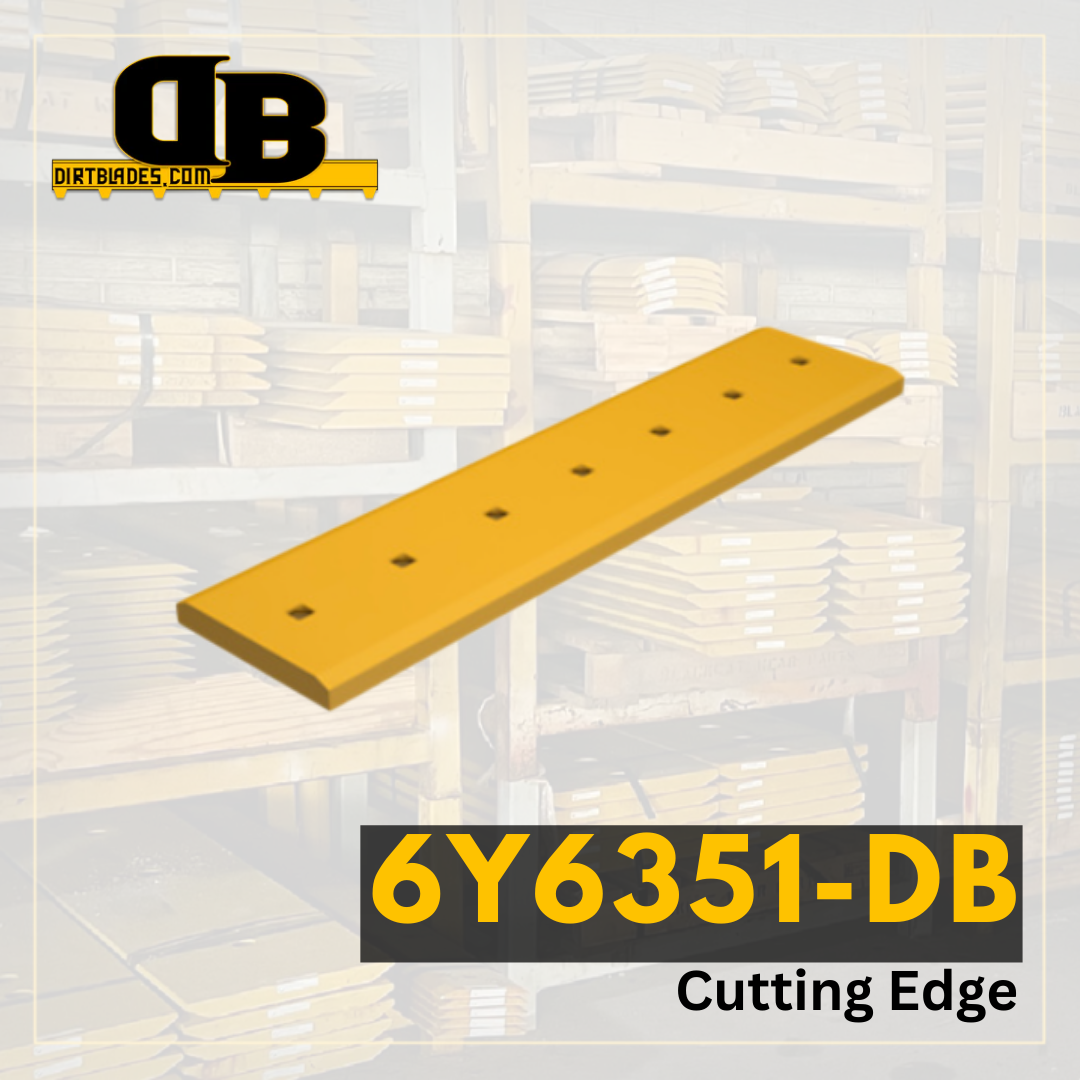

Cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 966 |
|---|---|
| Series | G GII H |
| Configuration | Spade Nose Rock |
| Serial Number | 1486908 1486909 2529490 2544500 2544501 2544502 2544503 2678804 3107887 |
| Blade Position | Base Edge Wear Plate |
| Blade Thickness | 1.375 |
| Blade Width | 10 |
| Blade Length | 41.75 |
| Hole Quantity | 7 |
| Bolt Diameter | 0.875 |
| First Hole Distance From End in Inches | 2.875 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 3.5 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
