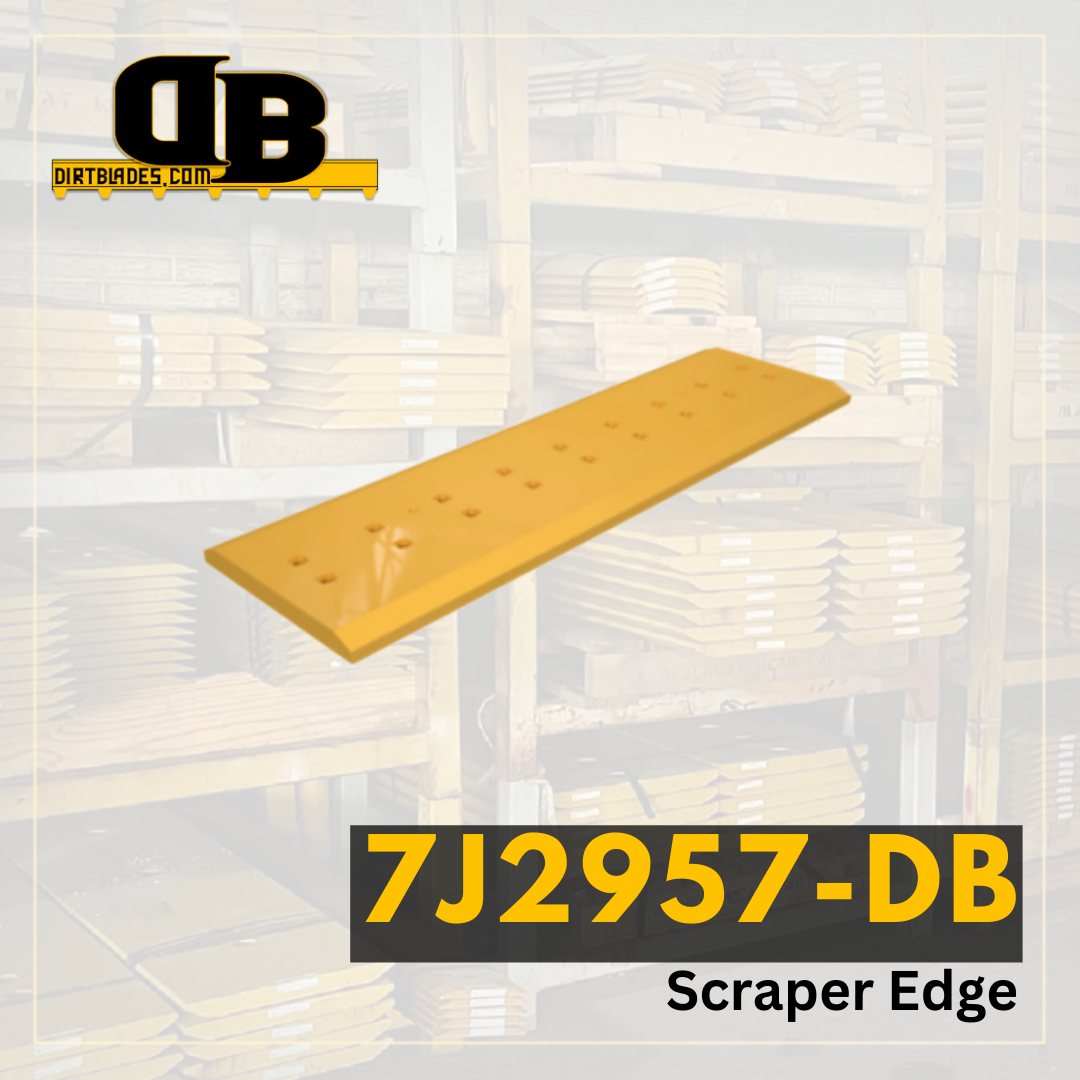

7J2957-DB | Scraper Edge

SKU: 7J2957
Regular price $718.74

Protect your bucket's lip with precision-manufactured OEM quality scraper blades. Our Ground Engaging Tools (GET) provide superior protection and increased versatility. Made of steel that maintains hardness for long wear life, always choose OEM quality GET to safeguard your investment.

Model Number 630 631 637
Series Number B C
Configuration
Serial Number 64M 11G 10G 28F 32F
Blade Position Drop Center
Blade Thickness 1.625
Blade Width 16
Blade Length 54.25
Hole Quantity 18
Bolt Diameter 1
First Hole Distance From End in Inches 3.125
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 9
Bolt Length for First Row of Holes 3.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 3.125
Second Set of Holes Second Hole Distance From First Hole 6
Second Set of Holes Third Hole Distance From Second Hole 6
