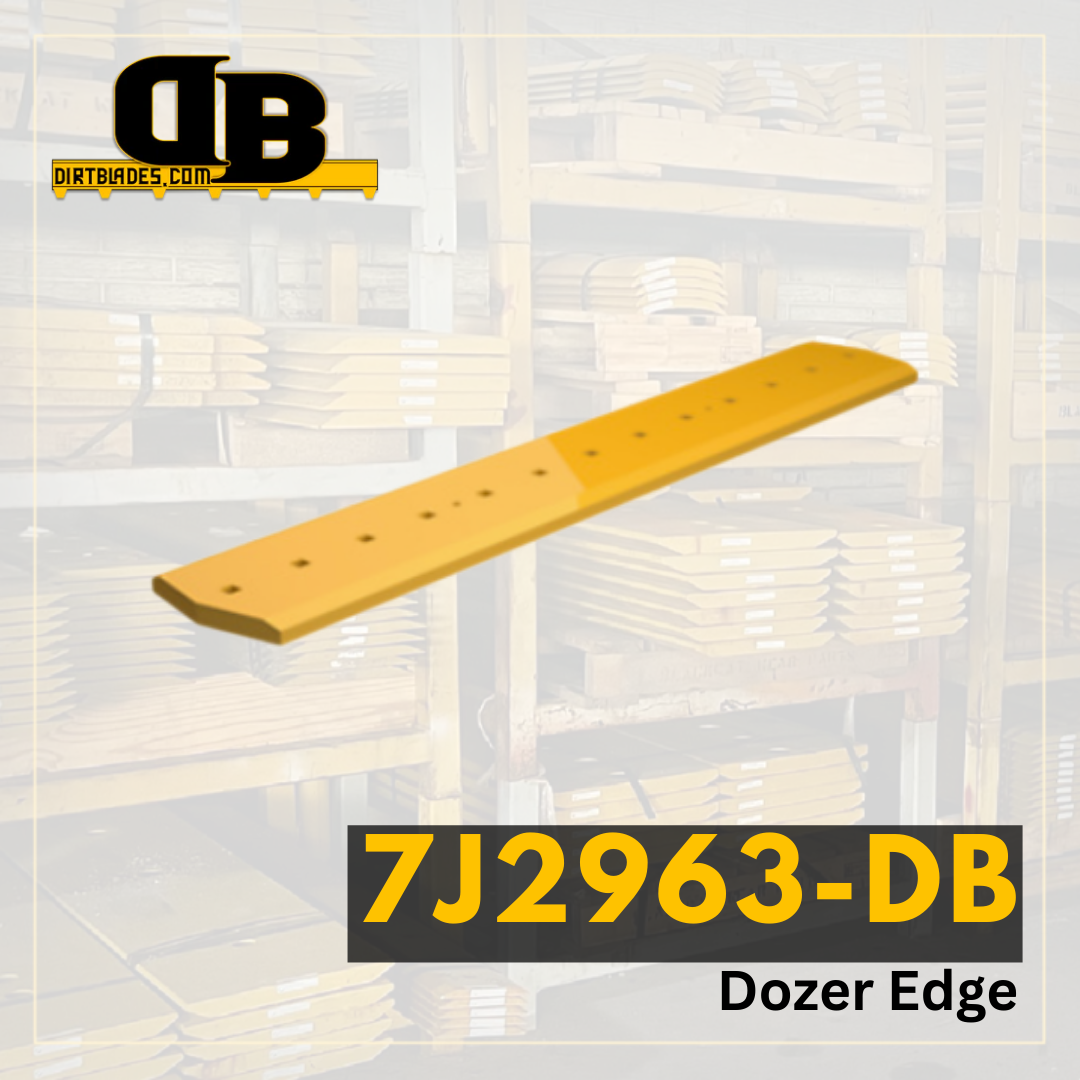

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | D9 |
|---|---|
| Series Number | L |
| Configuration | Semi-U |
| Serial Number | 18Y1875 52Y 42S |
| Blade Position | End Bit (Long Side) RH |
| Blade Thickness | 2.5 |
| Blade Width | 18 |
| Blade Length | 27.594 |
| Hole Quantity | 7 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 3.11 |
| Second Hole Distance From First Hole in Inches | 7.087 |
| Third Hole Distance From Second Hole in Inches | 2.953 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 4.125 |
| Bolt Quantity for Second Row of Holes | 4 |
| Bolt Length for Second Row of Holes | 4.125 |
| Second Set of Holes First Hole Distance From End | 2.008 |
| Second Set of Holes Second Hole Distance From First Hole | 2.953 |
| Second Set of Holes Third Hole Distance From Second Hole | 7.087 |
