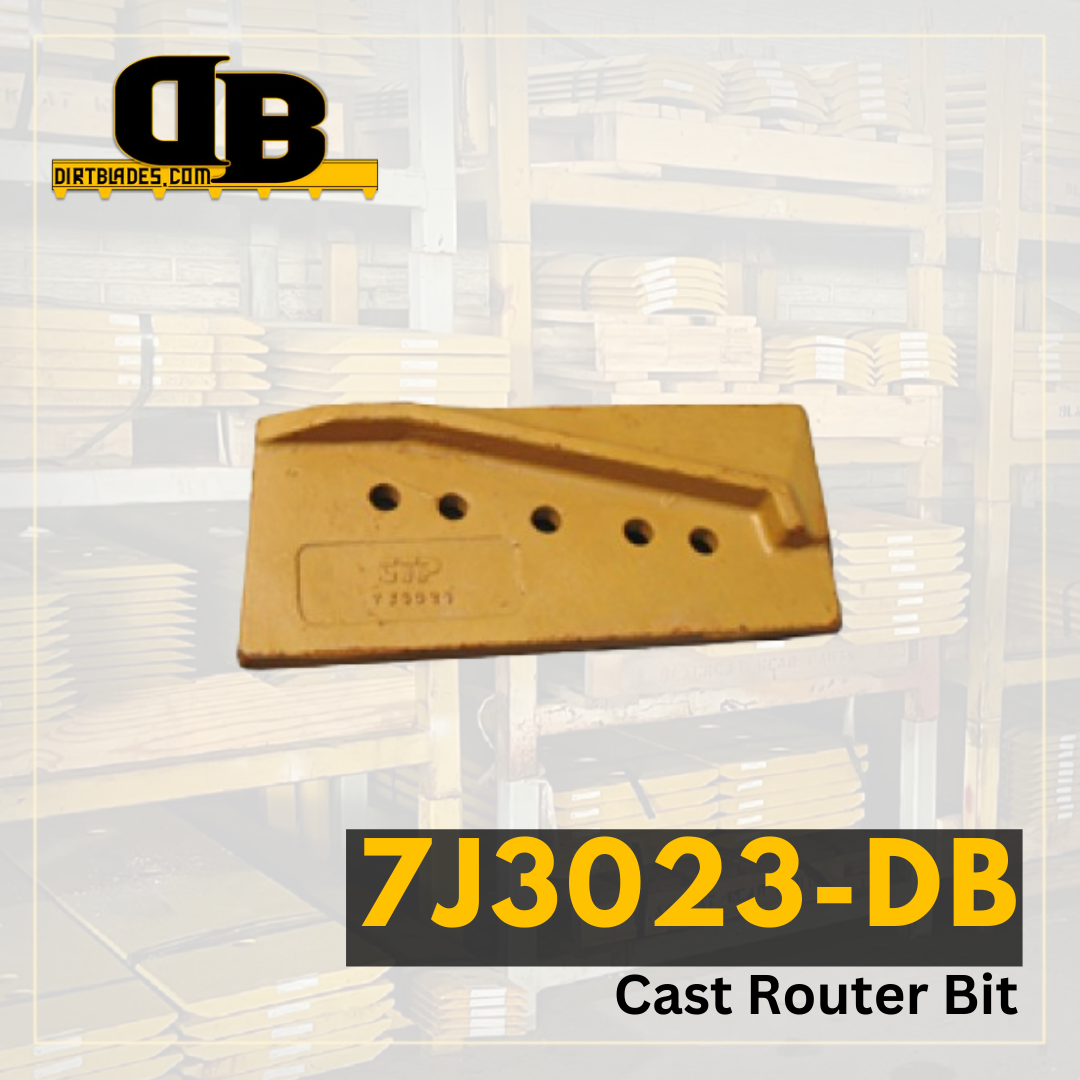

Router bits help prevent wear and costly damage to the scraper bowl. Level cut router bits are extended below the bolt holes and are used for clean-up work, reducing windows by keeping more of the material in front of the cutting edges. Heavy-duty router bits are similar to standard router bits but offer more wear material. Standard router bits are recommended for most applications.
| Model Number | 630 631 637 |
|---|---|
| Series Number | B C |
| Configuration | |
| Serial Number | 64M 11G 10G 28F 32F |
| Blade Position | RH/LH Router Bit |
| Blade Thickness | 0.875 |
| Blade Width | 9.625 |
| Blade Length | 22.75 |
| Hole Quantity | 5 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 0 |
| Second Hole Distance From First Hole in Inches | 2.5 |
| Third Hole Distance From Second Hole in Inches | 3.5 |
| Bolt Quantity for First Row of Holes | 5 |
| Bolt Length for First Row of Holes | 3 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
