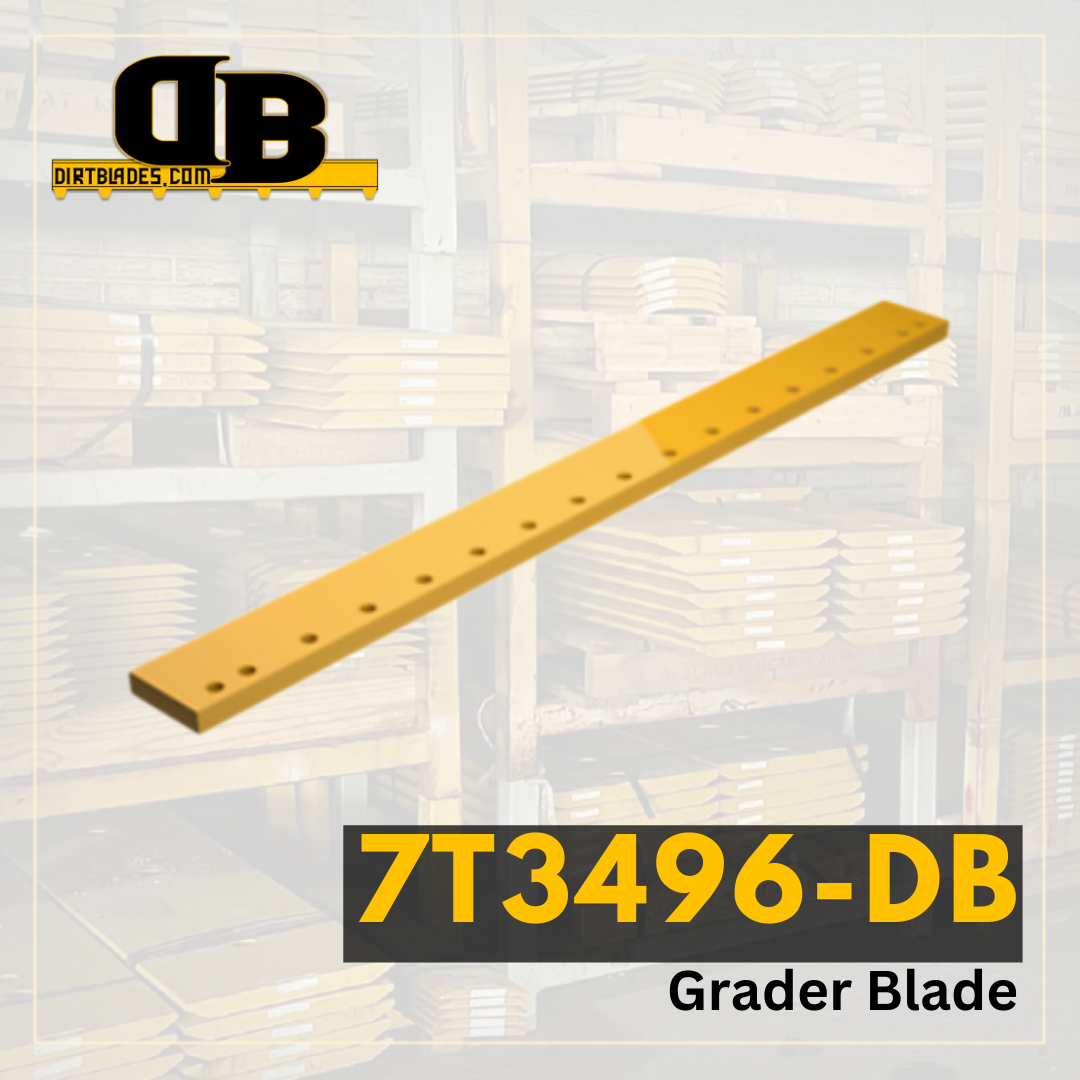

7T3496 | Grader Blade

SKU: 7T3496

Call for pricing - 870-536-0402

The Grader Blade, or the land leveler, is a heavy-duty equipment that's used mostly for smoothing and leveling the ground. It's got a big, flat metal blade that you can adjust to different angles and heights and attach it to a tractor or other heavy machinery. The cool thing is that you can adjust the blade's height and angle to match the job's requirements. The blades are made precisely to last long, work reliably, and enhance productivity.

Model Number 824
Series Number J K
Configuration General Purpose
Serial Number 129" JAGZ BUCKETS
Blade Position Top Plate for Flat Blades Left
Blade Thickness 0.75
Blade Width 8
Blade Length 23.988
Hole Quantity 2
Bolt Diameter 1.375
First Hole Distance From End in Inches 8.937
Second Hole Distance From First Hole in Inches 13.551
Third Hole Distance From Second Hole in Inches 0
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 4.75
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
