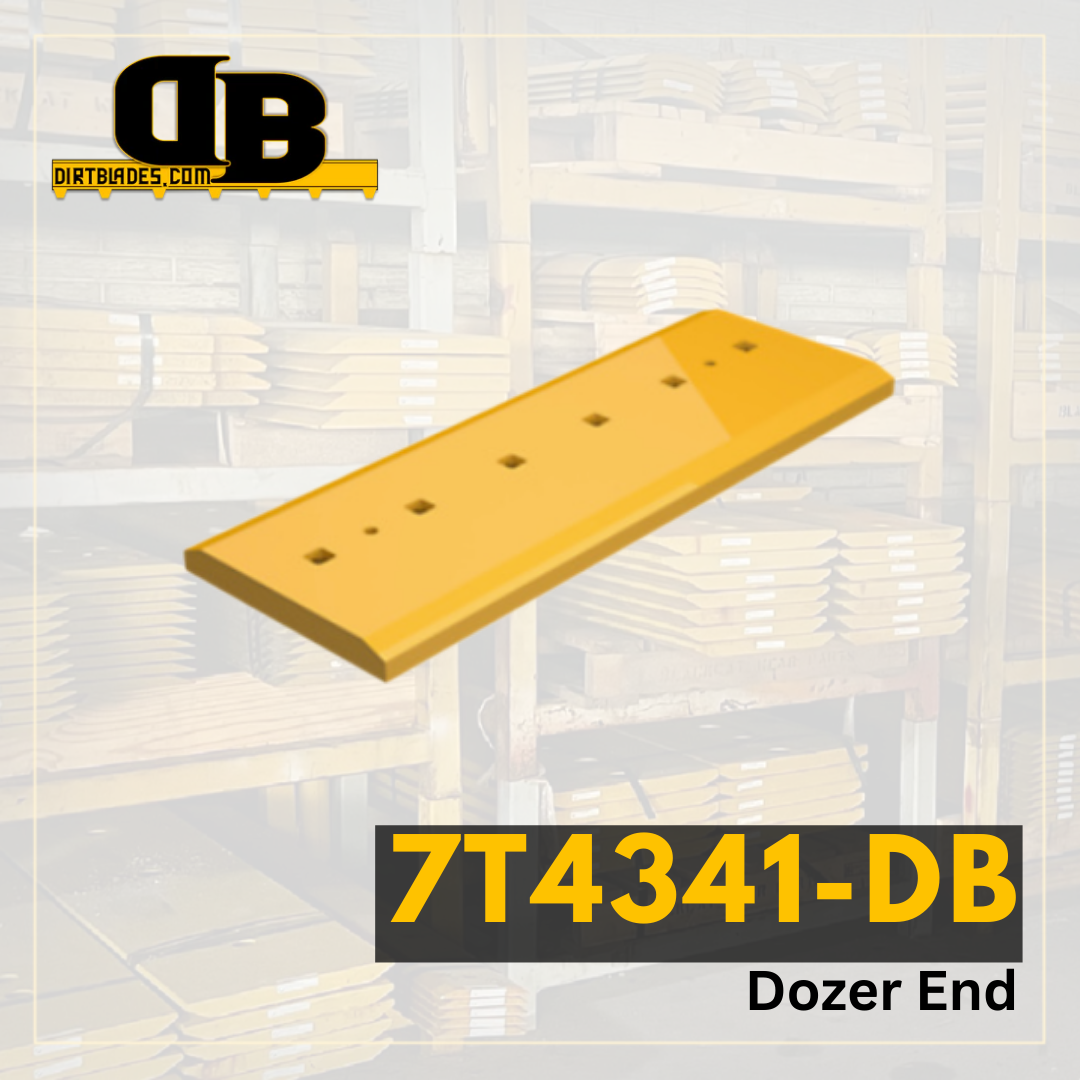

7T4341-DB | Dozer End

SKU: 7T4341
Regular price $546.20

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D9
Series Number G H
Configuration Full-U
Serial Number 14C 19K 78X
Blade Position Wide Center (Offset Holes)
Blade Thickness 1.625
Blade Width 16
Blade Length 35.5
Hole Quantity 6
Bolt Diameter 1
First Hole Distance From End in Inches 2.75
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 6
Bolt Length for First Row of Holes 3.5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
