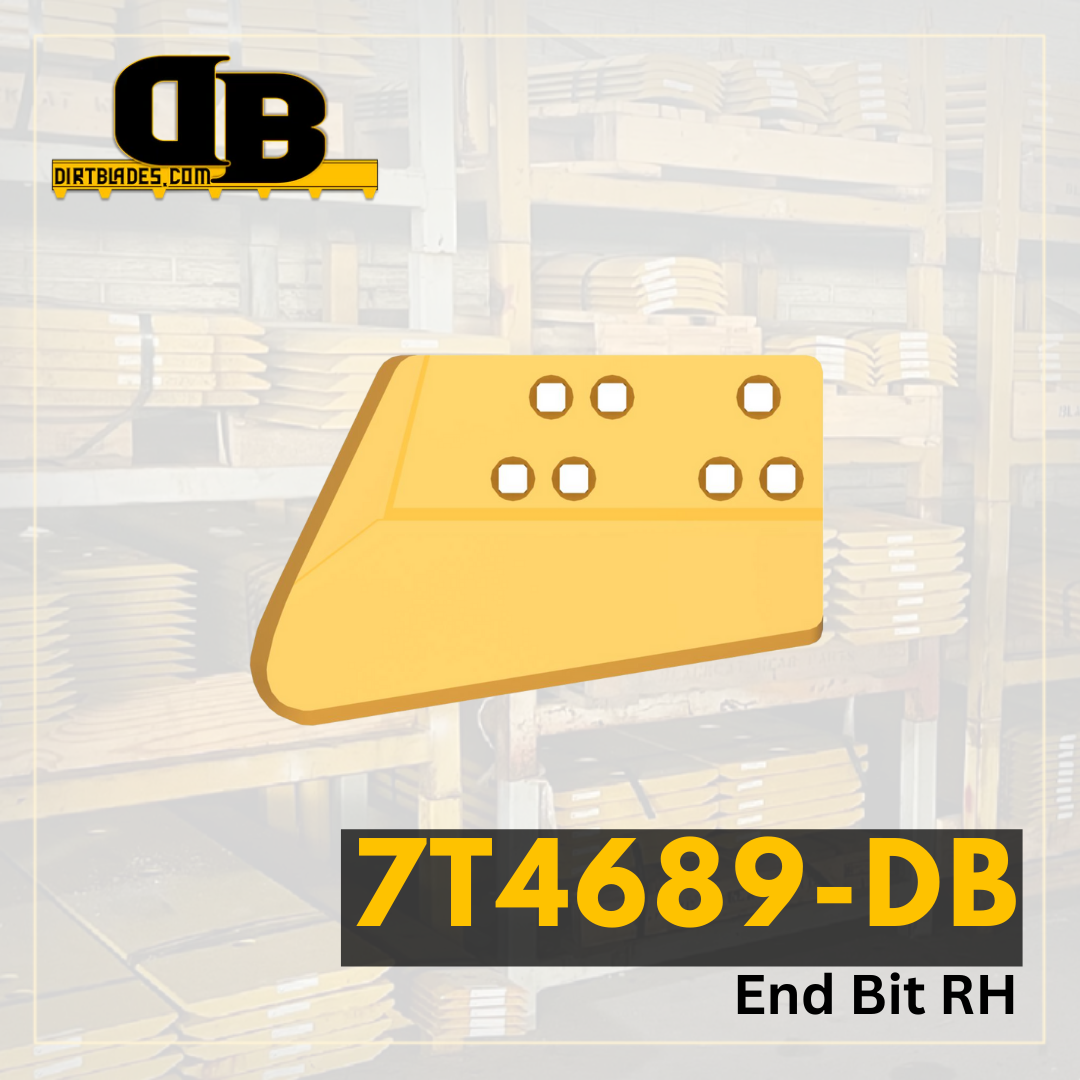

7T4689-DB | RH End Bit

SKU: 7T4689
Regular price $710.72

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number D9
Series Number L
Configuration Semi-U
Serial Number 18Y1-1875 52Y 42S
Blade Position End Bit (Long Side) RH
Blade Thickness 2.5
Blade Width 18
Blade Length 27.594
Hole Quantity 7
Bolt Diameter 1.25
First Hole Distance From End in Inches 3.11
Second Hole Distance From First Hole in Inches 7.087
Third Hole Distance From Second Hole in Inches 2.953
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 4.125
Bolt Quantity for Second Row of Holes 4
Bolt Length for Second Row of Holes 4.125
Second Set of Holes First Hole Distance From End 2.008
Second Set of Holes Second Hole Distance From First Hole 2.953
Second Set of Holes Third Hole Distance From Second Hole 7.087
