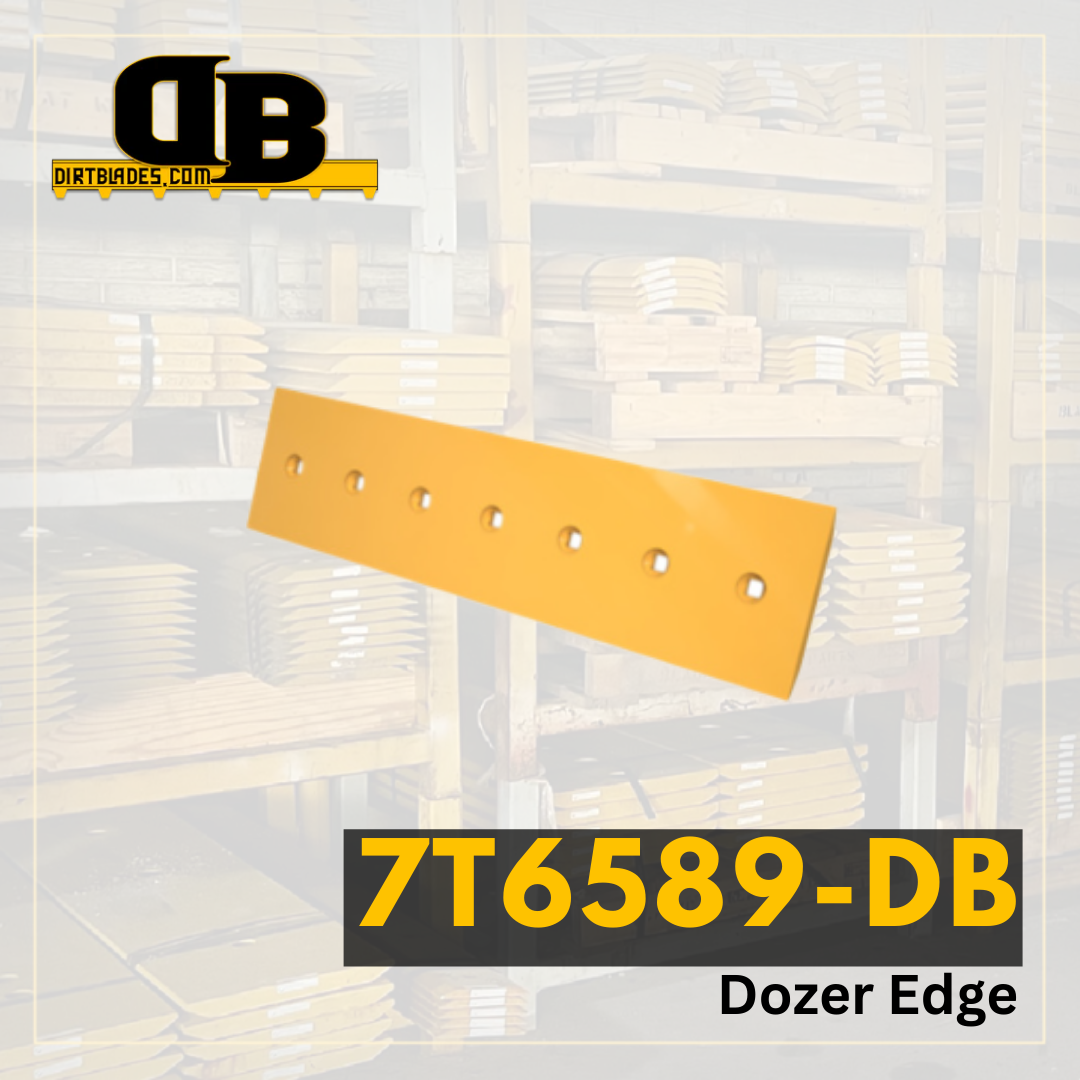

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
Model Number | D7 |
---|---|
Series Number | |
Configuration | Angle |
Serial Number | 17C5001-P 06A 35D 84D 18E 06E |
Blade Position | 11" Center |
Blade Thickness | 1 |
Blade Width | 11 |
Blade Length | 43 |
Hole Quantity | 7 |
Bolt Diameter | 0.875 |
First Hole Distance From End in Inches | 3.5 |
Second Hole Distance From First Hole in Inches | 6 |
Third Hole Distance From Second Hole in Inches | 6 |
Bolt Quantity for First Row of Holes | 7 |
Bolt Length for First Row of Holes | 2.75 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 0 |
Second Set of Holes Second Hole Distance From First Hole | 0 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
