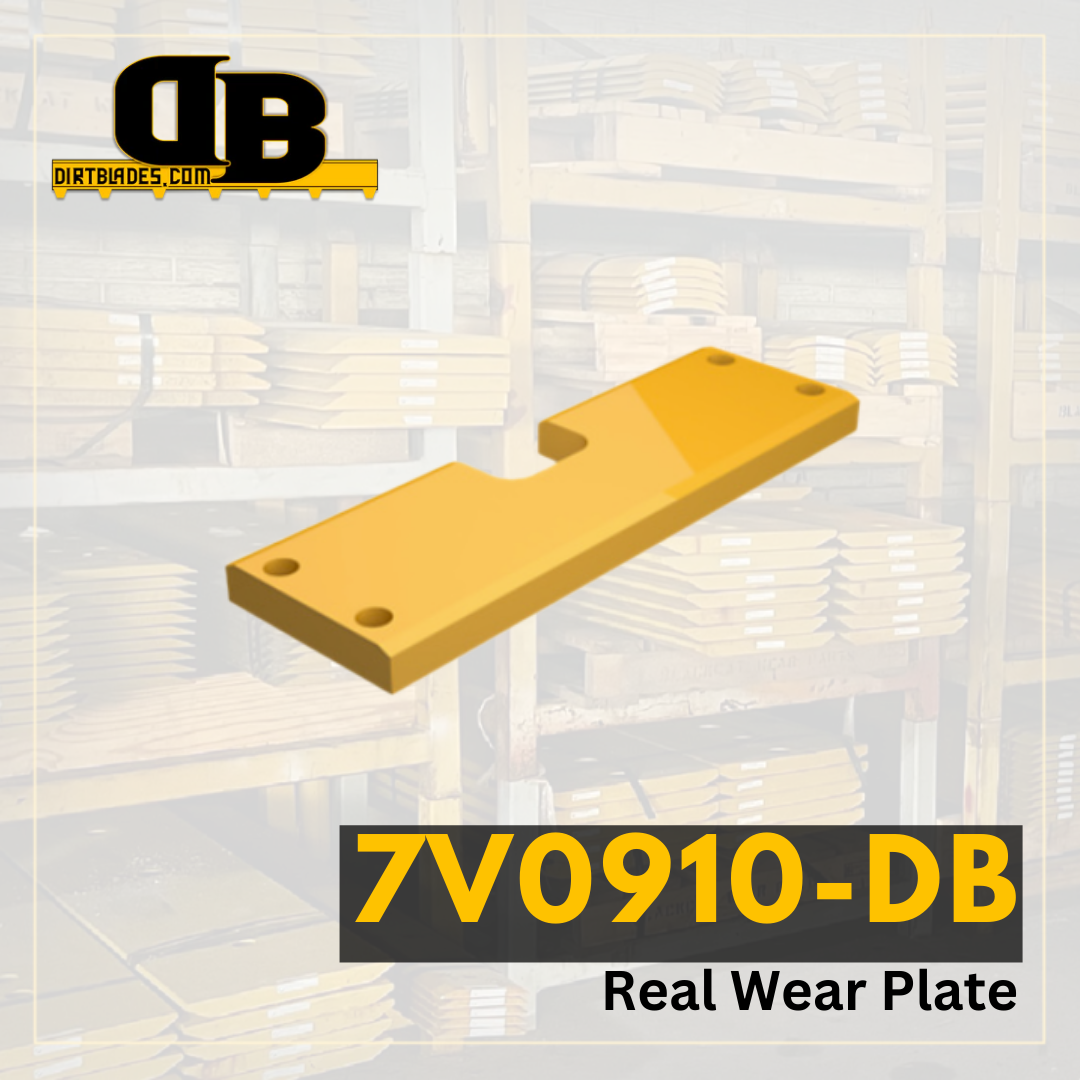

7V0910-DB | Rear Wear Plate

SKU: 7V0910
Regular price $446.43

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.

Model Number 973
Series Number
Configuration Spade Nose Rock
Serial Number 5V7346
Blade Position Rear Wear Plate
Blade Thickness 1.625
Blade Width 11.5
Blade Length 23.625
Hole Quantity 4
Bolt Diameter 0.75
First Hole Distance From End in Inches 1.438
Second Hole Distance From First Hole in Inches 20.75
Third Hole Distance From Second Hole in Inches 0
Bolt Quantity for First Row of Holes 2
Bolt Length for First Row of Holes 2.5
Bolt Quantity for Second Row of Holes 2
Bolt Length for Second Row of Holes 2.5
Second Set of Holes First Hole Distance From End 1.438
Second Set of Holes Second Hole Distance From First Hole 20.75
Second Set of Holes Third Hole Distance From Second Hole 0
