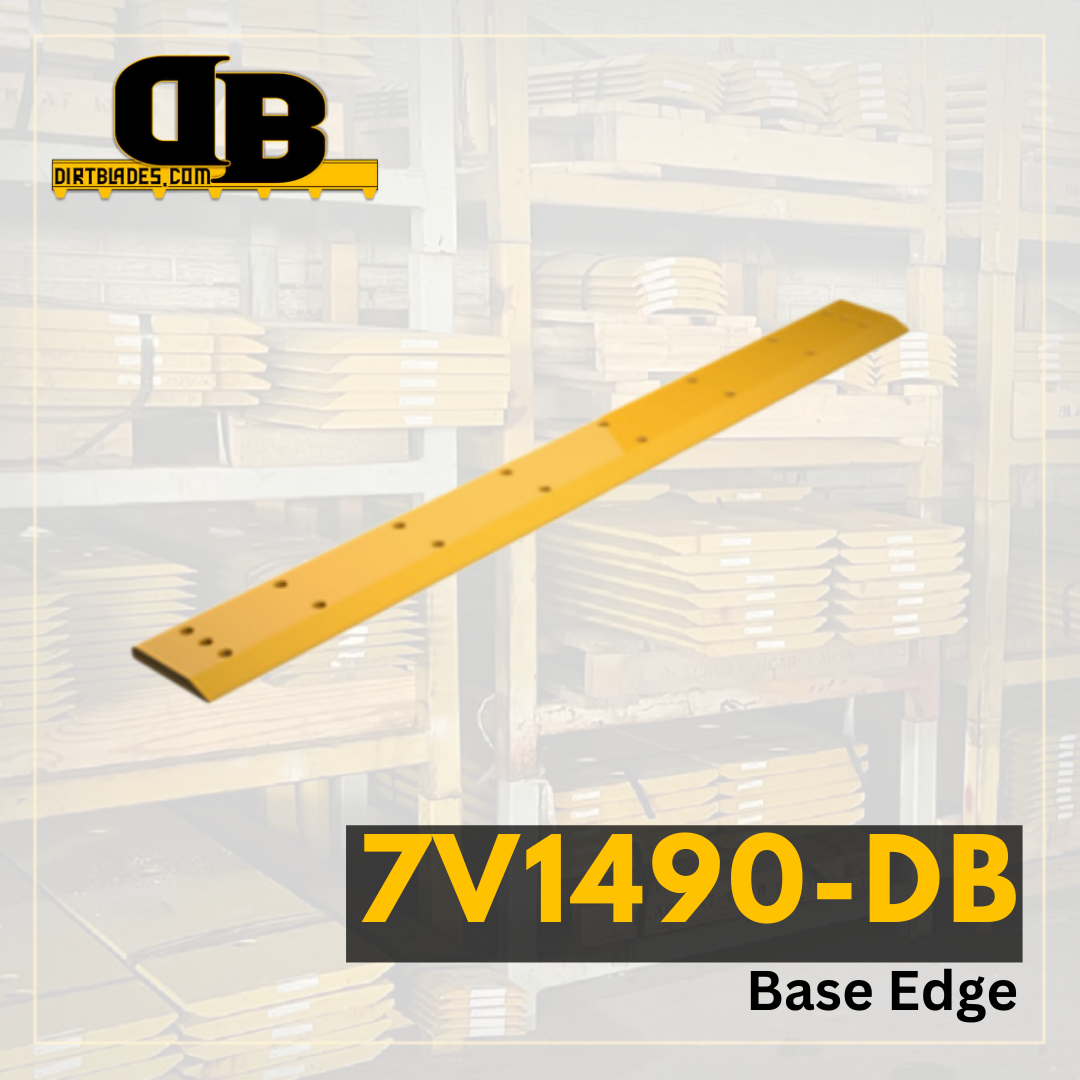

7V1490-DB | Base Edge

SKU: 7V1490
Regular price $966.69

Base Edges are the ultimate solution for heavy equipment performance. Made from high-quality materials, they provide exceptional durability and performance in tough conditions. Their precise engineering ensures a perfect fit on a wide range of equipment models, maximizing productivity and uptime. Invest in our products today for unmatched reliability and performance that will take your operations to the next level!

Model Number 960
Series Number F
Configuration Corner Guard System, Material Handling
Serial Number 7I3106 1052956 1070582
Blade Position Base Edge For Bolt-on Edges or Teeth
Blade Thickness 1.5
Blade Width 11.811
Blade Length 119.375
Hole Quantity 18
Bolt Diameter 1.375
First Hole Distance From End in Inches 5.25
Second Hole Distance From First Hole in Inches 12.25
Third Hole Distance From Second Hole in Inches 16.875
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 5.25
Second Set of Holes Second Hole Distance From First Hole 108.875
Second Set of Holes Third Hole Distance From Second Hole 0
