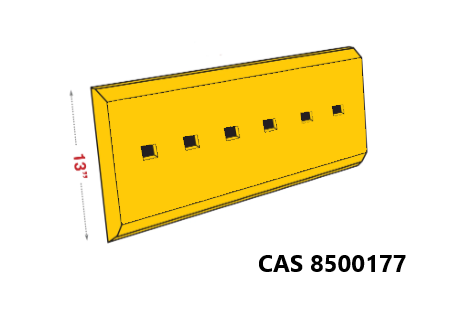

8500177-DB | Bucket Edge Center

SKU: 8500177
Regular price $548.06

Bolt-on cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.

Model Number 721
Series Number D
Configuration
Serial Number 106.25" BUCKET
Blade Position Center
Blade Thickness 1.25
Blade Width 13
Blade Length 48.028
Hole Quantity 6
Bolt Diameter 1
First Hole Distance From End in Inches 7.768
Second Hole Distance From First Hole in Inches 6.646
Third Hole Distance From Second Hole in Inches 6.28
Bolt Quantity for First Row of Holes 6
Bolt Length for First Row of Holes 3
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
