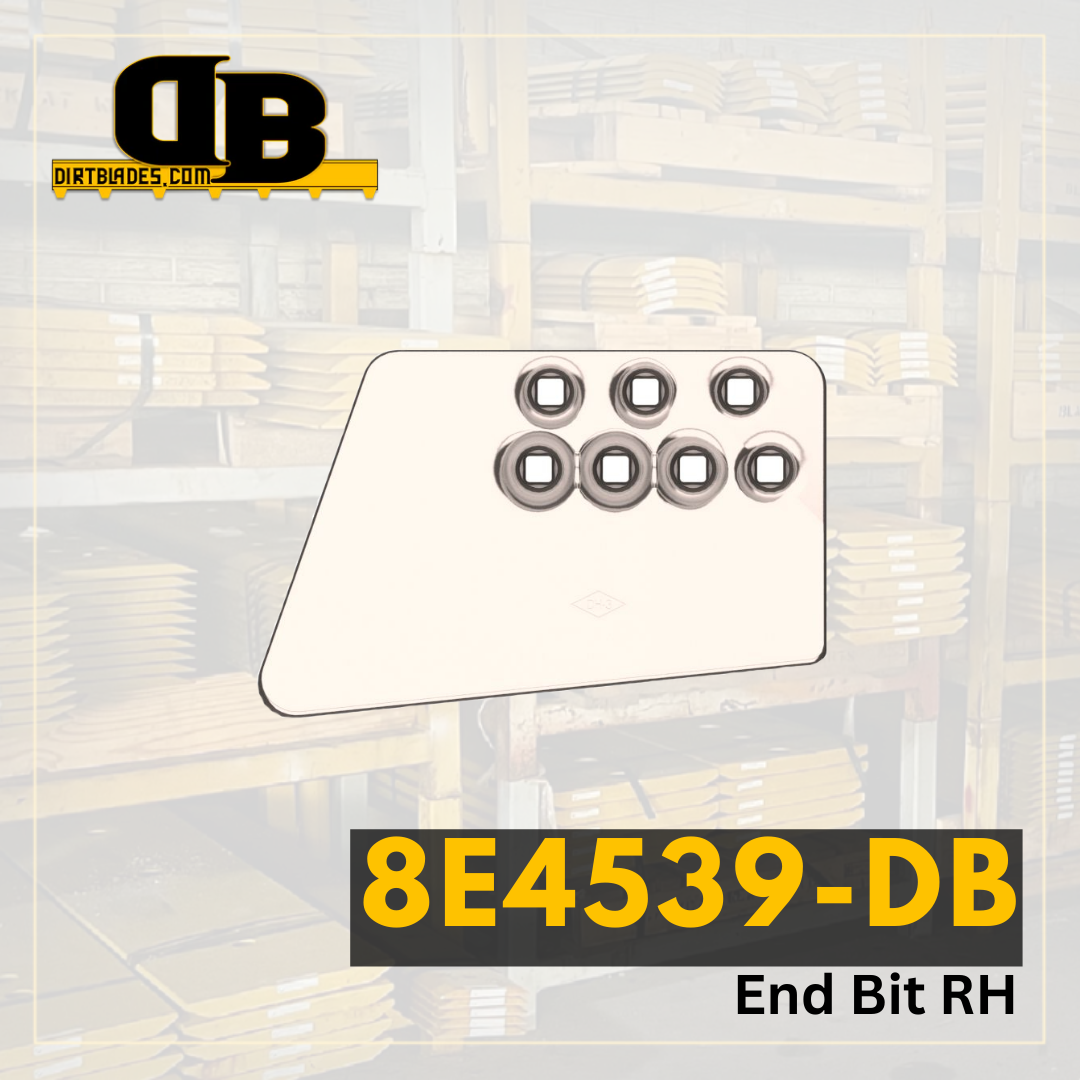

8E4539-DB | End Bit RH

SKU: 8E4539
Regular price $746.40

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number D8
Series Number L
Configuration Semi-U
Serial Number 04Y1-1939
Blade Position Cast End Bit RH
Blade Thickness 1.755
Blade Width 15.495
Blade Length 24.115
Hole Quantity 7
Bolt Diameter 1
First Hole Distance From End in Inches 3.614
Second Hole Distance From First Hole in Inches 4
Third Hole Distance From Second Hole in Inches 4
Bolt Quantity for First Row of Holes 3
Bolt Length for First Row of Holes 3.5
Bolt Quantity for Second Row of Holes 4
Bolt Length for Second Row of Holes 3.5
Second Set of Holes First Hole Distance From End 2.362
Second Set of Holes Second Hole Distance From First Hole 3.25
Second Set of Holes Third Hole Distance From Second Hole 3.25
