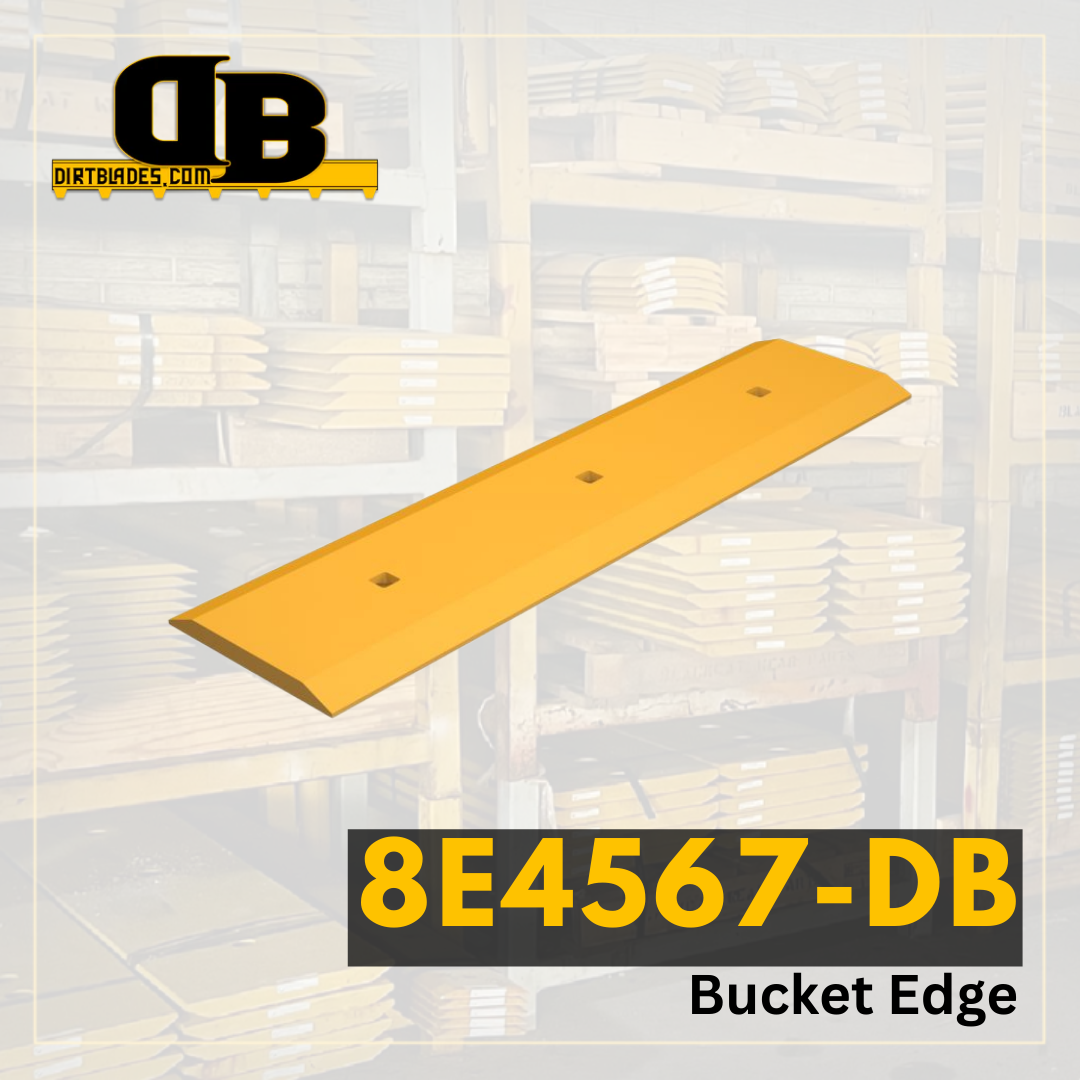

Protect your bucket with OEM quality cutting edges. They offer versatile and consistent protection, increase bucket capacity, reduce downtime, and are made from high-quality steel for long wear life. Choose OEM quality Ground Engaging Tools to protect your investment.
| Model Number | 924 |
|---|---|
| Series | G GZ H |
| Configuration | Corner Guard System |
| Serial Number | 1455166 1455165 1784665 1455163 1455162 1687535 1477331 1694872 1728568 1733635 1673963 2410935 2516 |
| Blade Position | Center |
| Blade Thickness | 1 |
| Blade Width | 11 |
| Blade Length | 43.5 |
| Hole Quantity | 3 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 7 |
| Second Hole Distance From First Hole in Inches | 14.125 |
| Third Hole Distance From Second Hole in Inches | 14.125 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 2.75 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
