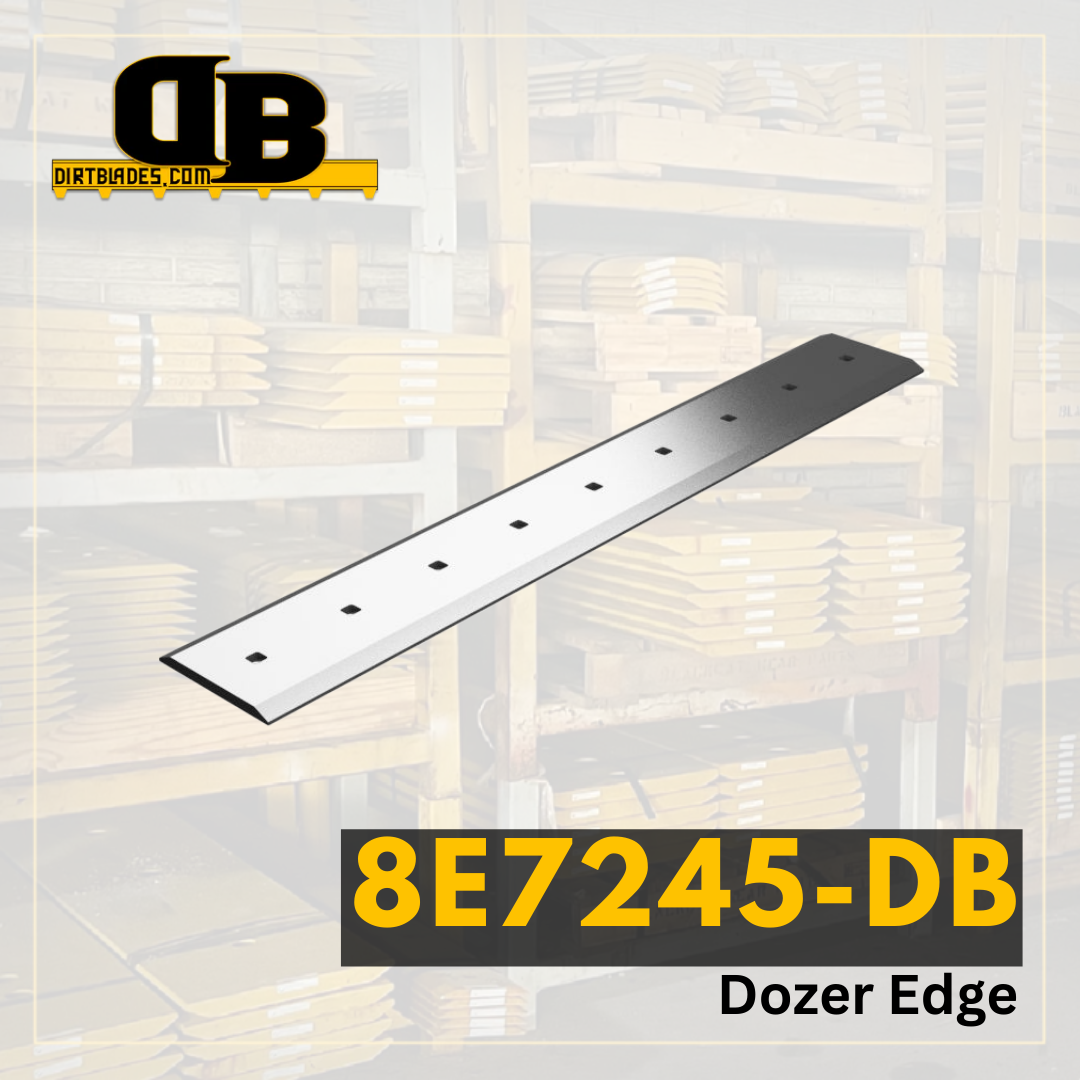

8E7245-DB | Dozer Edge

SKU: 8E7245
Regular price $147.06

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D6
Series Number K K2
Configuration Power Angle Tilt XL & LGP
Serial Number 3250000
Blade Position Center
Blade Thickness 0.625
Blade Width 8
Blade Length 53.4
Hole Quantity 9
Bolt Diameter 0.75
First Hole Distance From End in Inches 2.7
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 9
Bolt Length for First Row of Holes 2.25
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
