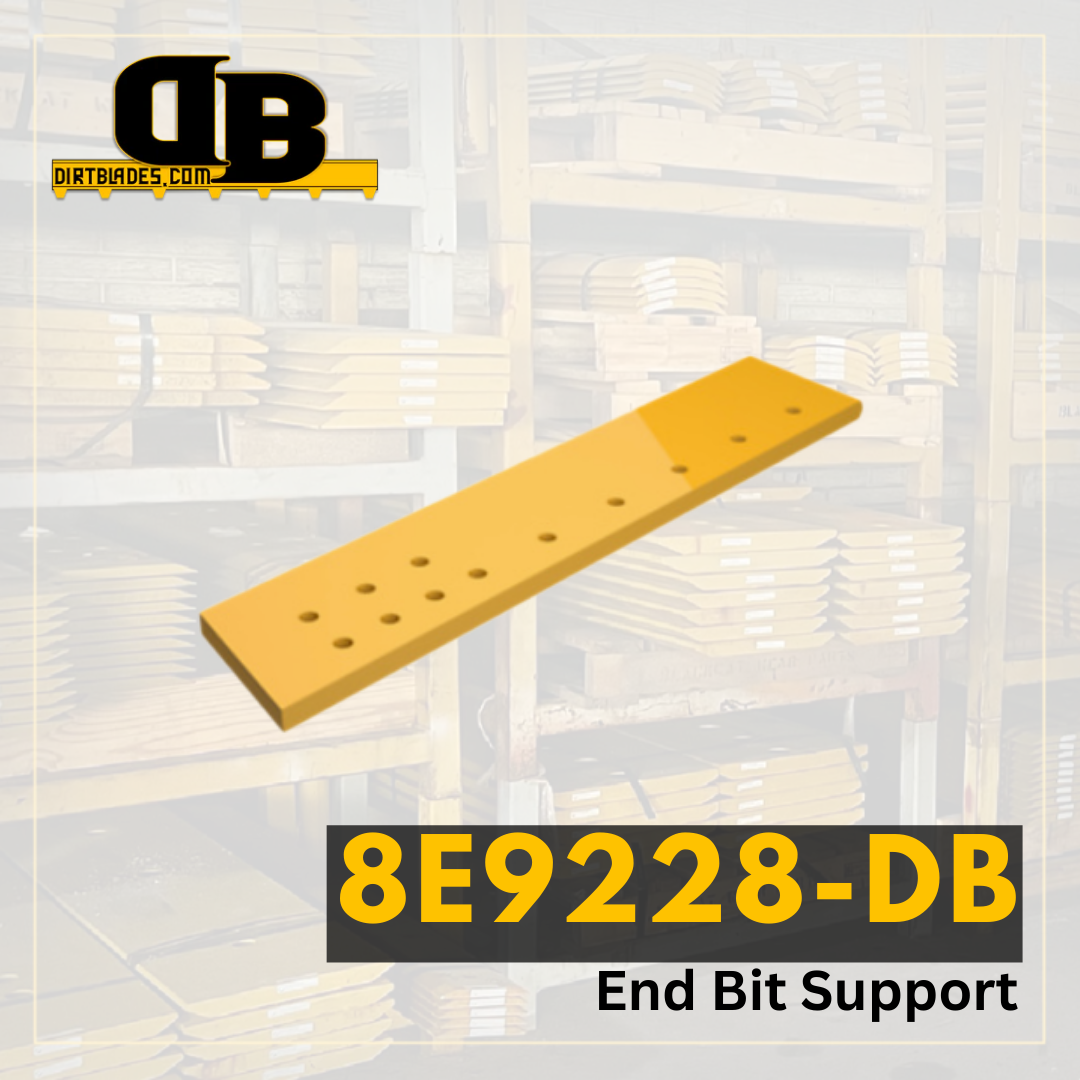

8E9228 | End Bit Support

SKU: 8E92282

Call for pricing - 870-536-0402

Cutting edge supports are integral parts of the blade structure to which cutting edges and end bits are bolted to. Replacement cutting edge support plates offer the same high quality materials and dimensional precision as the factory originals. Supports with severe wear or damage can lead to loose fitting end-bits and cutting edges, resulting in a loss of productivityThe primary function of the center support for a semi-universal blade is to minimize vibrations, reduce flexing, and maintain the proper alignment of the driveshaft components.

Model Number
Series Number
Configuration
Serial Number
Blade Position
Blade Thickness 0.313"
Blade Width 4.813"
Blade Length 11"
Hole Quantity
Bolt Diameter
First Hole Distance From End in Inches
Second Hole Distance From First Hole in Inches
Third Hole Distance From Second Hole in Inches
Bolt Quantity for First Row of Holes
Bolt Length for First Row of Holes
Bolt Quantity for Second Row of Holes
Bolt Length for Second Row of Holes
Second Set of Holes First Hole Distance From End
Second Set of Holes Second Hole Distance From First Hole
Second Set of Holes Third Hole Distance From Second Hole
