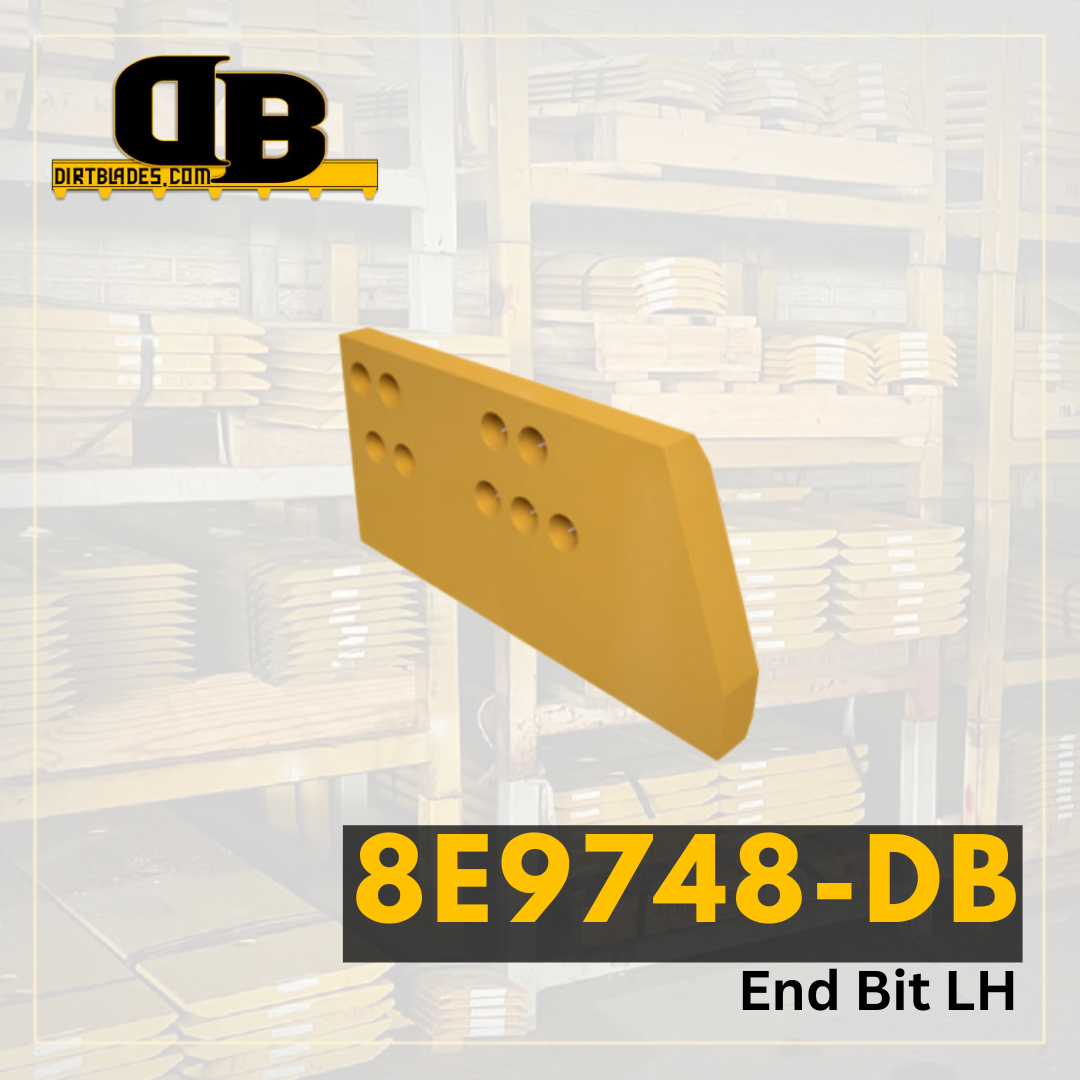

8E9748-DB | End Bit LH

SKU: 8E9748
Regular price $876.58

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number D10
Series Number
Configuration Semi-U
Serial Number 79W
Blade Position Flat Shape Cut End Bit LH
Blade Thickness 3
Blade Width 15.5
Blade Length 30.5
Hole Quantity 9
Bolt Diameter 1.25
First Hole Distance From End in Inches 2.007
Second Hole Distance From First Hole in Inches 2.953
Third Hole Distance From Second Hole in Inches 9.291
Bolt Quantity for First Row of Holes 4
Bolt Length for First Row of Holes 5
Bolt Quantity for Second Row of Holes 5
Bolt Length for Second Row of Holes 5
Second Set of Holes First Hole Distance From End 2.972
Second Set of Holes Second Hole Distance From First Hole 2.953
Second Set of Holes Third Hole Distance From Second Hole 7.638
