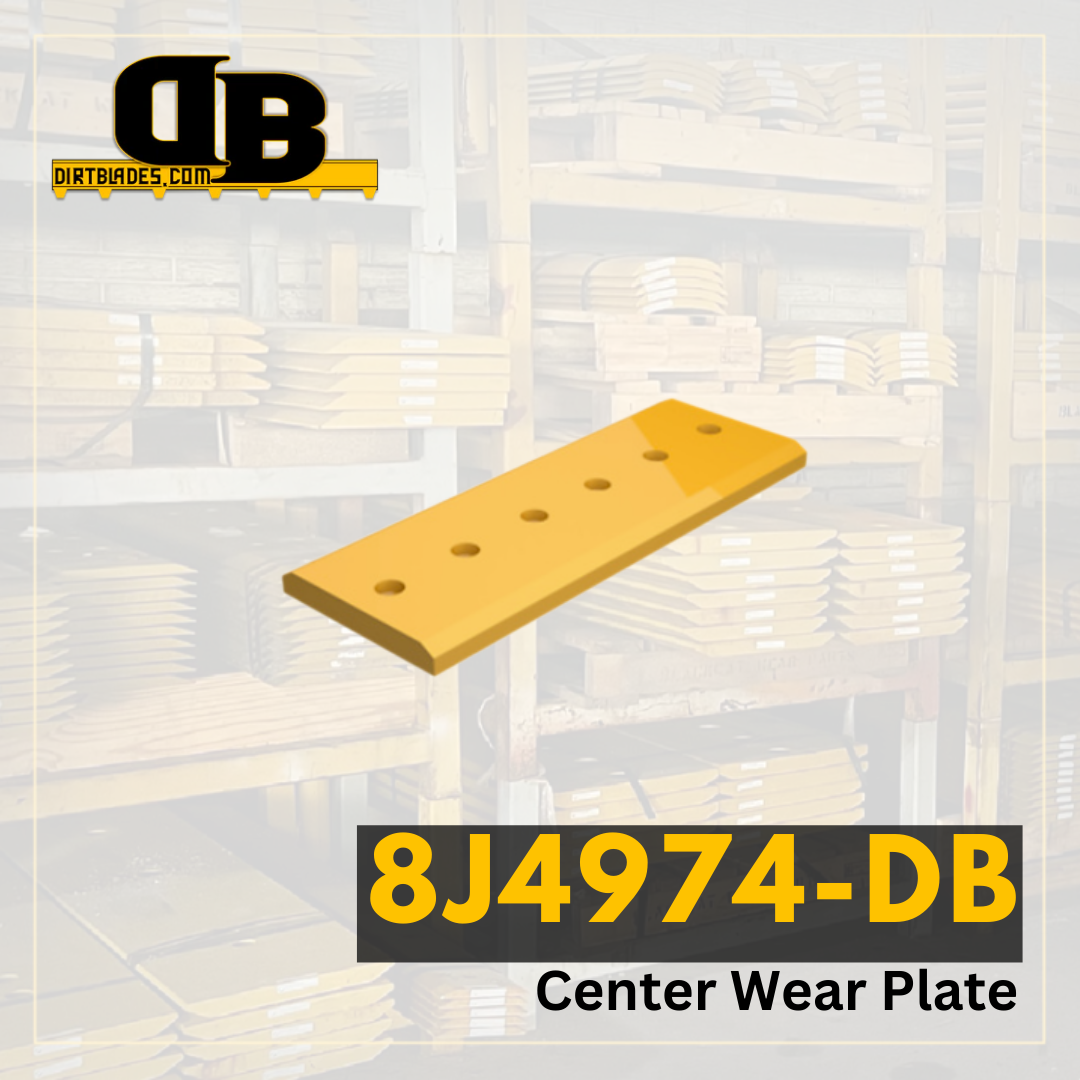

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | D6 |
|---|---|
| Series Number | R |
| Configuration | Semi-U |
| Serial Number | 1TP 3FP 1WP 3RP 4AP 8SP BHM |
| Blade Position | Dozer End Bit Support |
| Blade Thickness | 1 |
| Blade Width | 7.5 |
| Blade Length | 16.509 |
| Hole Quantity | 6 |
| Bolt Diameter | 0.813 |
| First Hole Distance From End in Inches | 4.3 |
| Second Hole Distance From First Hole in Inches | 3.19 |
| Third Hole Distance From Second Hole in Inches | 3.19 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 4.3 |
| Second Set of Holes Second Hole Distance From First Hole | 3.94 |
| Second Set of Holes Third Hole Distance From Second Hole | 3.66 |
