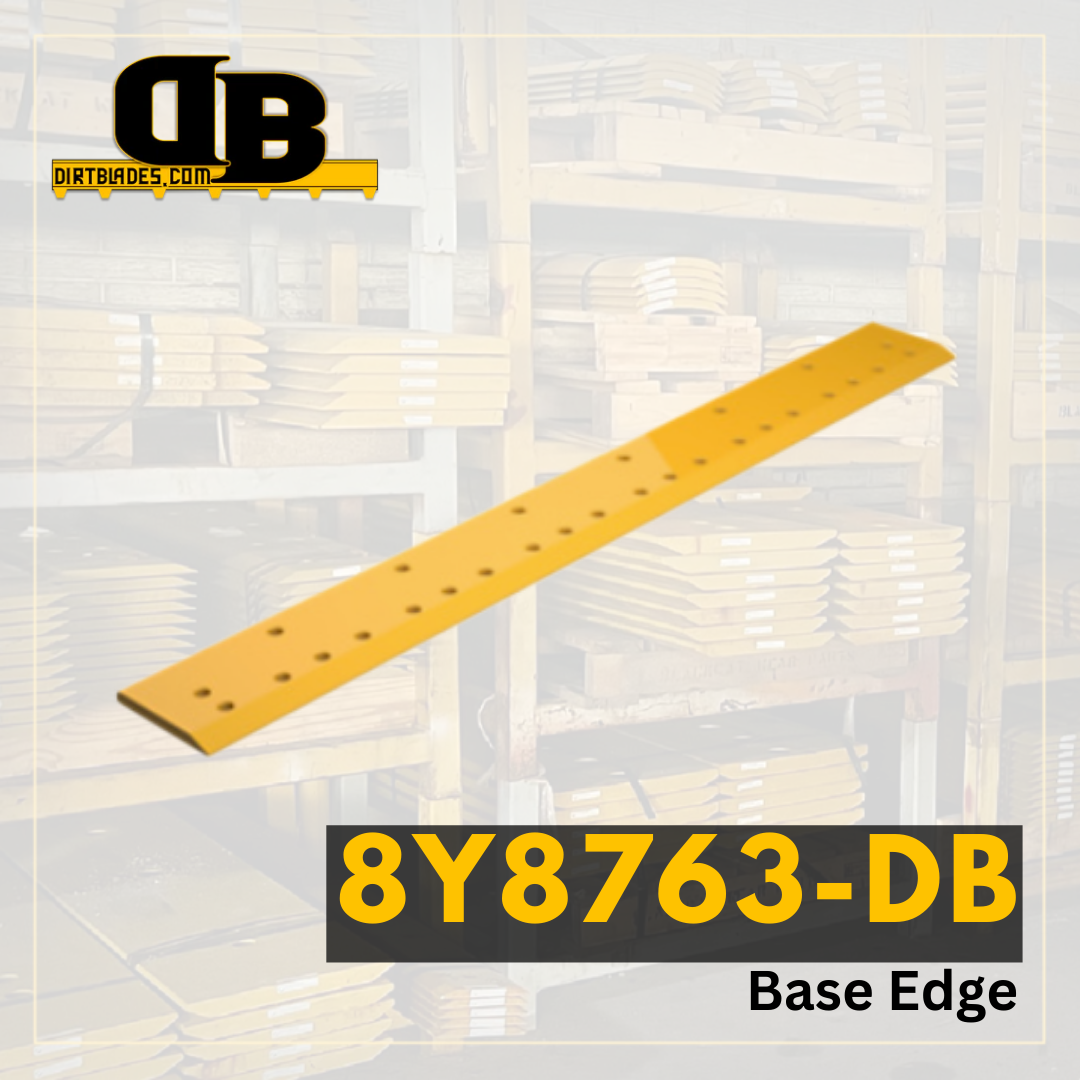

8Y8763-DB | Base Edge

SKU: 8Y8763
Regular price $348.24

Base Edges are the ultimate solution for heavy equipment performance. Made from high-quality materials, they provide exceptional durability and performance in tough conditions. Their precise engineering ensures a perfect fit on a wide range of equipment models, maximizing productivity and uptime. Invest in our products today for unmatched reliability and performance that will take your operations to the next level!

Model Number 939
Series Number
Configuration Corner Guard System
Serial Number 8Y8263 1410840
Blade Position Base Edge With Segment Holes
Blade Thickness 1
Blade Width 9.646
Blade Length 85
Hole Quantity 28
Bolt Diameter 1.063
First Hole Distance From End in Inches 3.86
Second Hole Distance From First Hole in Inches 4.92
Third Hole Distance From Second Hole in Inches 3.585
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 3.86
Second Set of Holes Second Hole Distance From First Hole 77.3
Second Set of Holes Third Hole Distance From Second Hole 0
