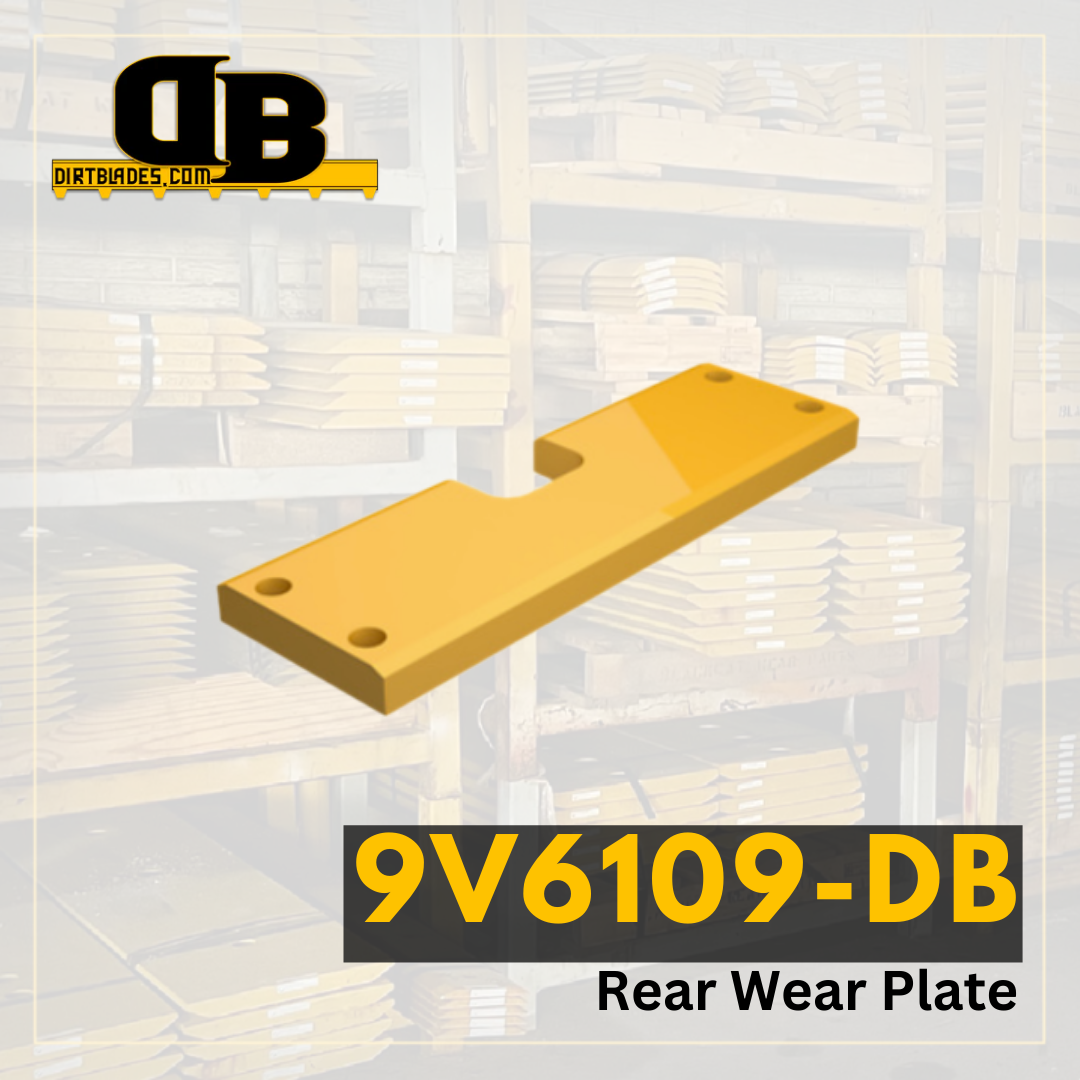

9V6109-DB | Rear Wear Plate

SKU: 9V6109
Regular price $0.00

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.

Model Number 980
Series Number C F
Configuration Spade Nose Rock
Serial Number 3V7233 9V0221 4V2719 9V0222 9U1290 9U1293 9V6708
Blade Position Rear Wear Plate
Blade Thickness 0.75
Blade Width 10
Blade Length 23.5
Hole Quantity 4
Bolt Diameter 0.75
First Hole Distance From End in Inches 1.375
Second Hole Distance From First Hole in Inches 20.75
Third Hole Distance From Second Hole in Inches 1.375
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 1.375
Second Set of Holes Second Hole Distance From First Hole 20.75
Second Set of Holes Third Hole Distance From Second Hole 1.375
