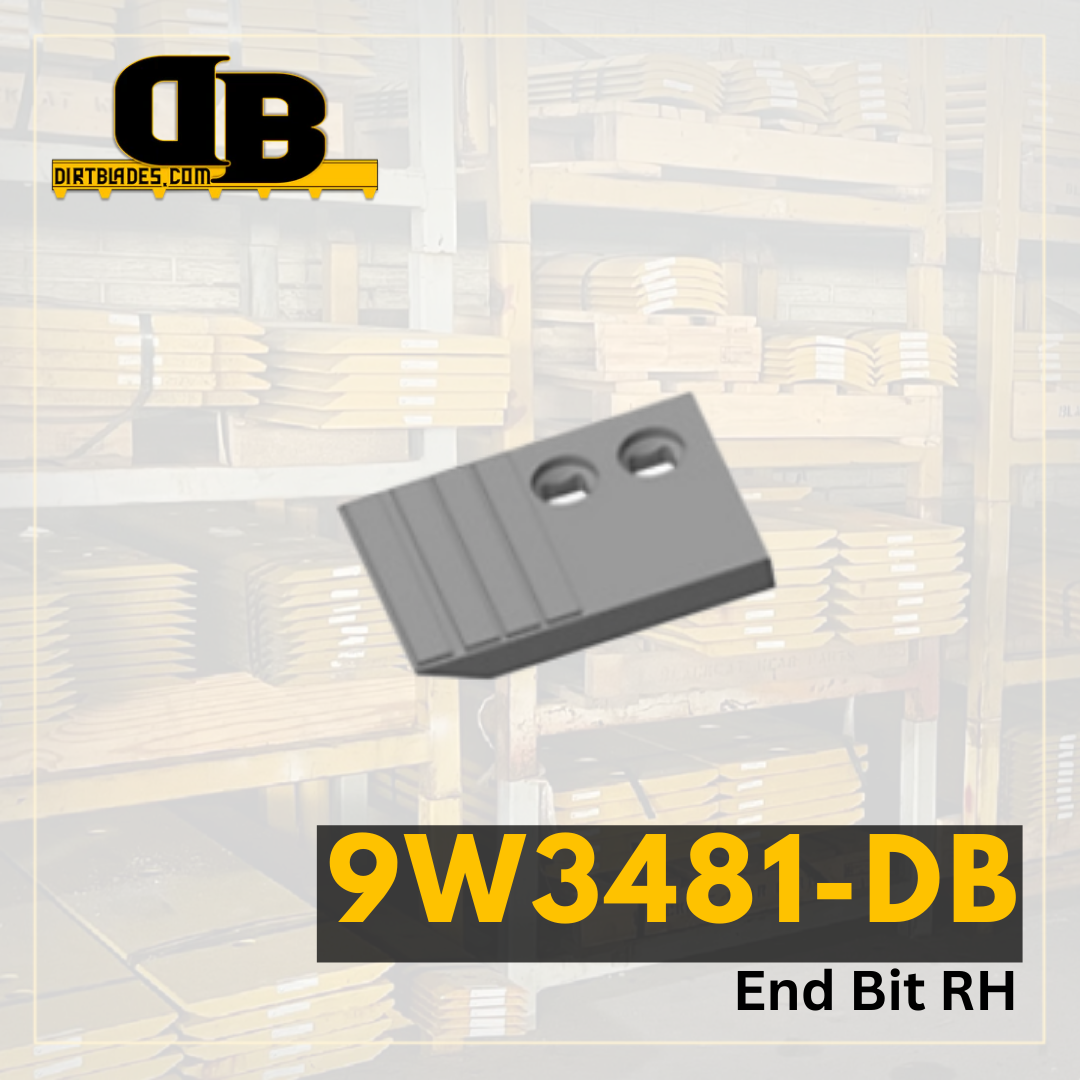

9W3481-DB | End Bit RH

SKU: 9W3481
Regular price $139.63

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number 916
Series Number
Configuration Corner Guard System
Serial Number 9C4940 8V7152 6W7769 8R2126 8R2127 9C4938 9C4939 6W5994 8V7153 1119634
Blade Position C/IMP End NR RH
Blade Thickness 1
Blade Width 10.563
Blade Length 6.25
Hole Quantity 2
Bolt Diameter 1
First Hole Distance From End in Inches 2.5
Second Hole Distance From First Hole in Inches 2.438
Third Hole Distance From Second Hole in Inches 0
Bolt Quantity for First Row of Holes 2
Bolt Length for First Row of Holes 2.75
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
