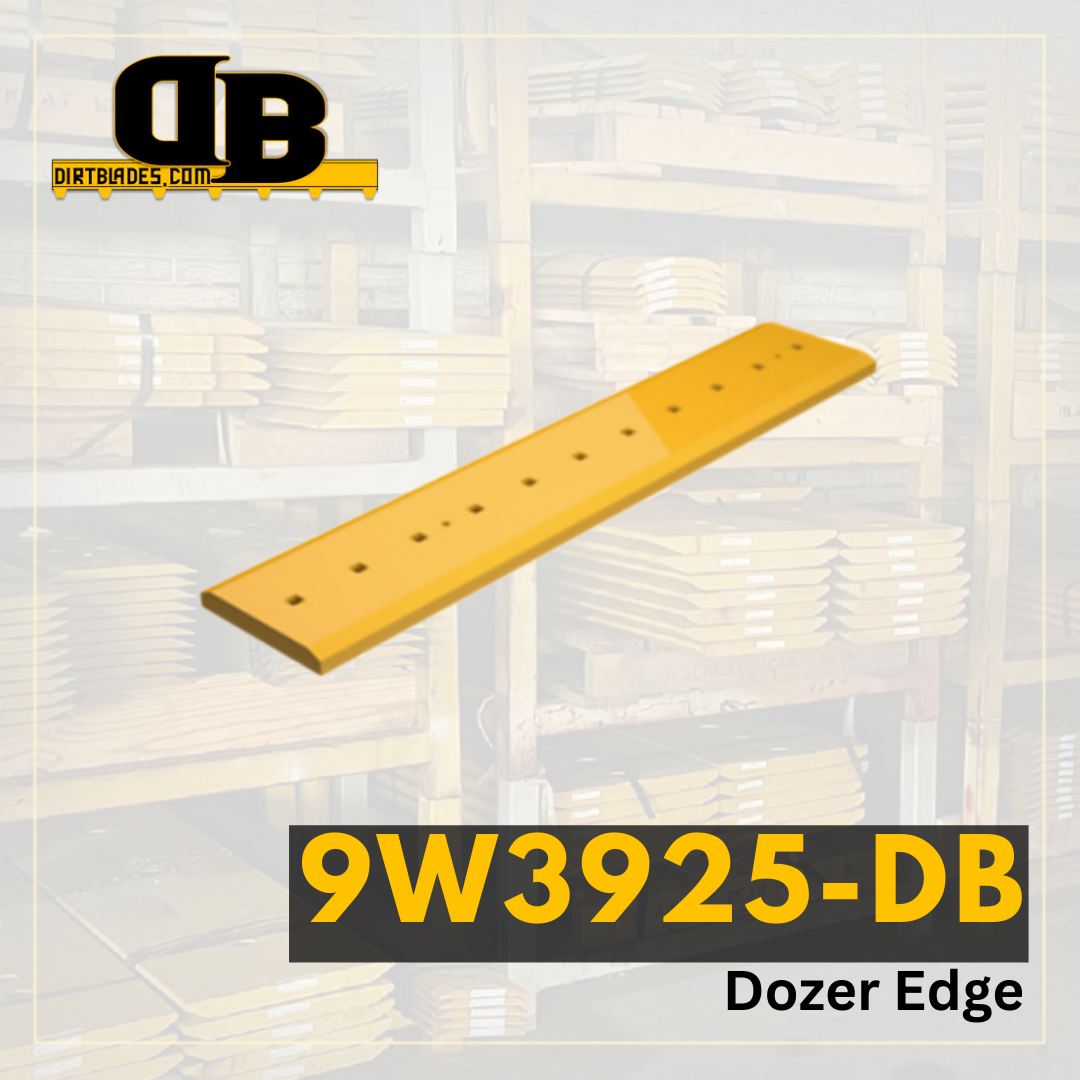

9W3925-DB | Dozer Edge

SKU: 9W3925
Regular price $959.98

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D8
Series Number L
Configuration Semi-U
Serial Number 04Y1-1939
Blade Position Extra Heavy Duty Center
Blade Thickness 1.75
Blade Width 13
Blade Length 66.625
Hole Quantity 11
Bolt Diameter 1
First Hole Distance From End in Inches 3.313
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 11
Bolt Length for First Row of Holes 3.5
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
