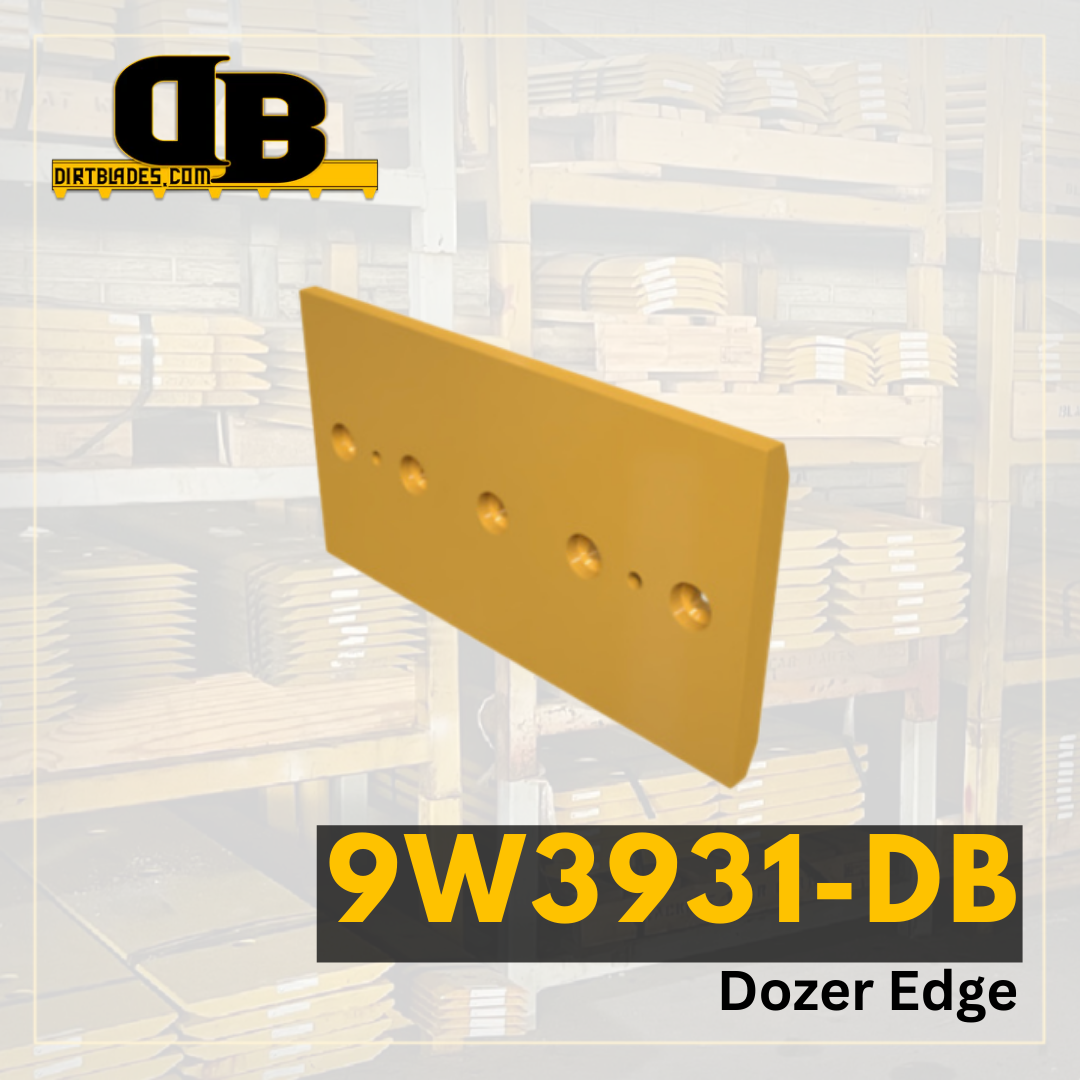

9W3931-DB | Dozer Edge

SKU: 9W3931
Regular price $413.60

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.

Model Number D9
Series Number L
Configuration Full-U
Serial Number 19Y1475-UP
Blade Position Extra Heavy Duty Center
Blade Thickness 1.75
Blade Width 16
Blade Length 29.875
Hole Quantity 5
Bolt Diameter 1.25
First Hole Distance From End in Inches 2.938
Second Hole Distance From First Hole in Inches 6
Third Hole Distance From Second Hole in Inches 6
Bolt Quantity for First Row of Holes 5
Bolt Length for First Row of Holes 4.125
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 0
Second Set of Holes Second Hole Distance From First Hole 0
Second Set of Holes Third Hole Distance From Second Hole 0
