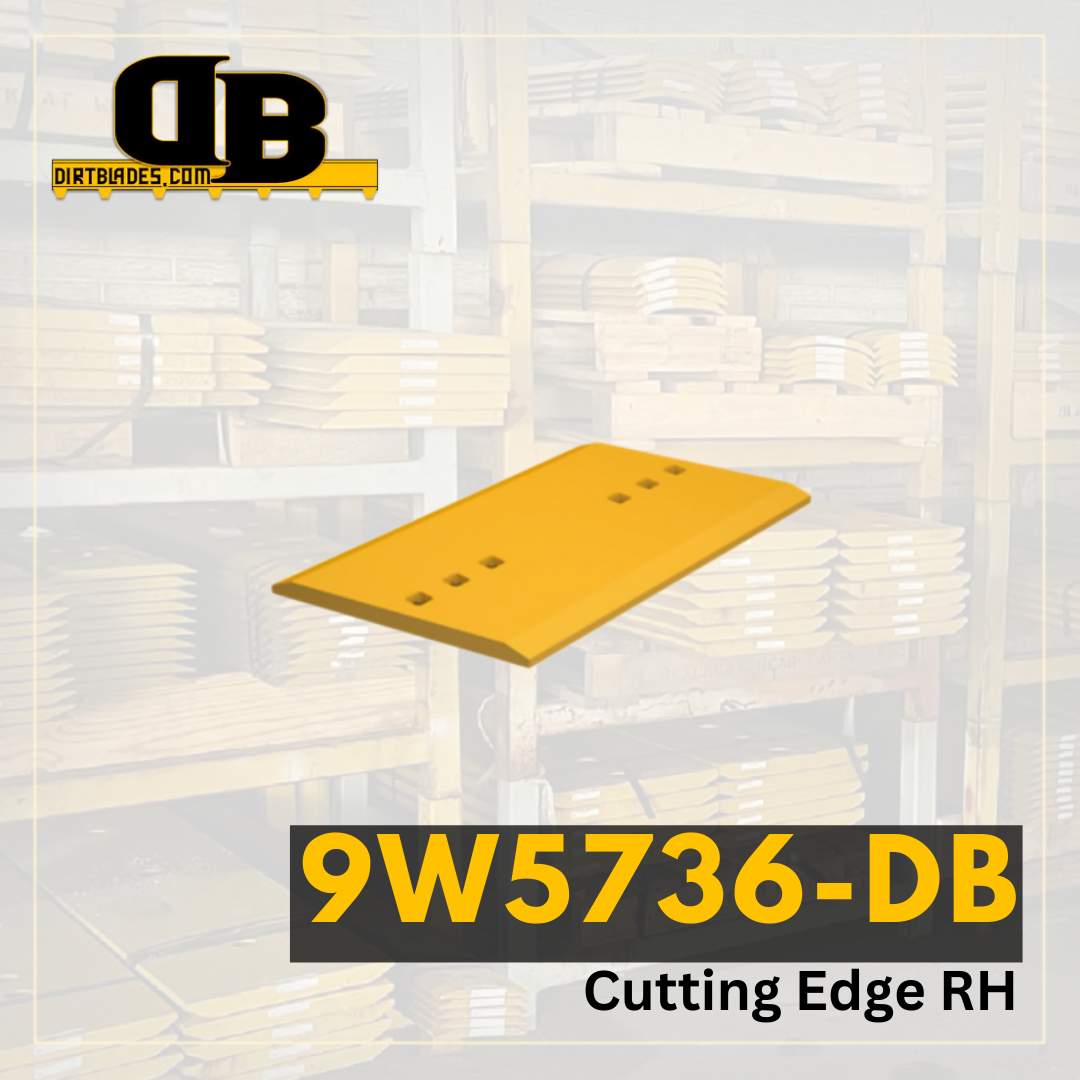

Cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 980 |
|---|---|
| Series | G H |
| Configuration | Spade Nose Rock |
| Serial Number | 1875326 1470312 2345911 |
| Blade Position | HA Intermediate Right Fabricated |
| Blade Thickness | 1.75 |
| Blade Width | 16 |
| Blade Length | 30.142 |
| Hole Quantity | 6 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 2.024 |
| Second Hole Distance From First Hole in Inches | 3.35 |
| Third Hole Distance From Second Hole in Inches | 3.35 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 3.75 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
