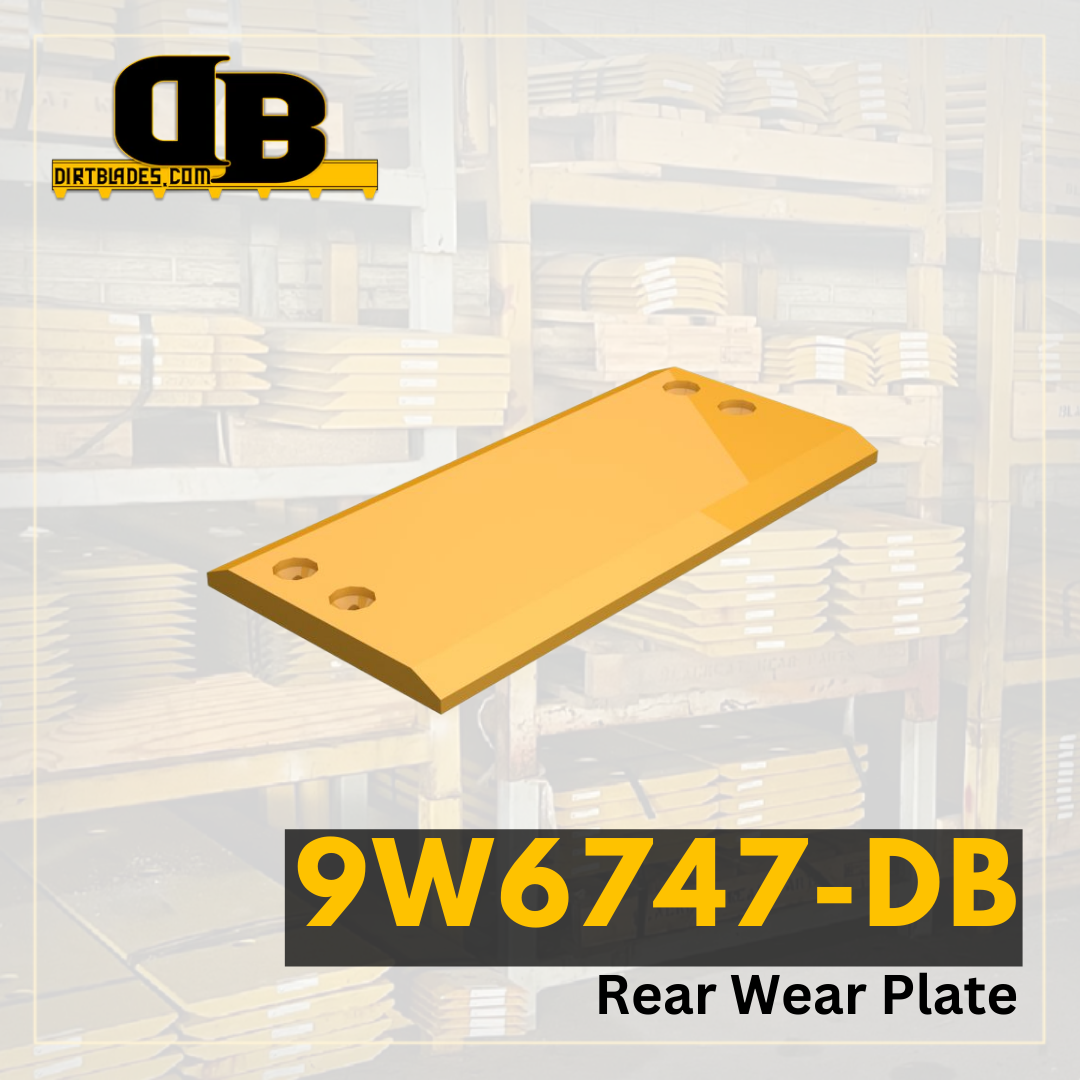

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | 980 |
|---|---|
| Series Number | F G |
| Configuration | Spade Nose Rock |
| Serial Number | 2Q2827 2Q2066 2Q2067 |
| Blade Position | Spade Nose Base Edge |
| Blade Thickness | 1.75 |
| Blade Width | 25.5 |
| Blade Length | 132.75 |
| Hole Quantity | 18 |
| Bolt Diameter | 1.438 |
| First Hole Distance From End in Inches | 10.125 |
| Second Hole Distance From First Hole in Inches | 5.25 |
| Third Hole Distance From Second Hole in Inches | 6.75 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
