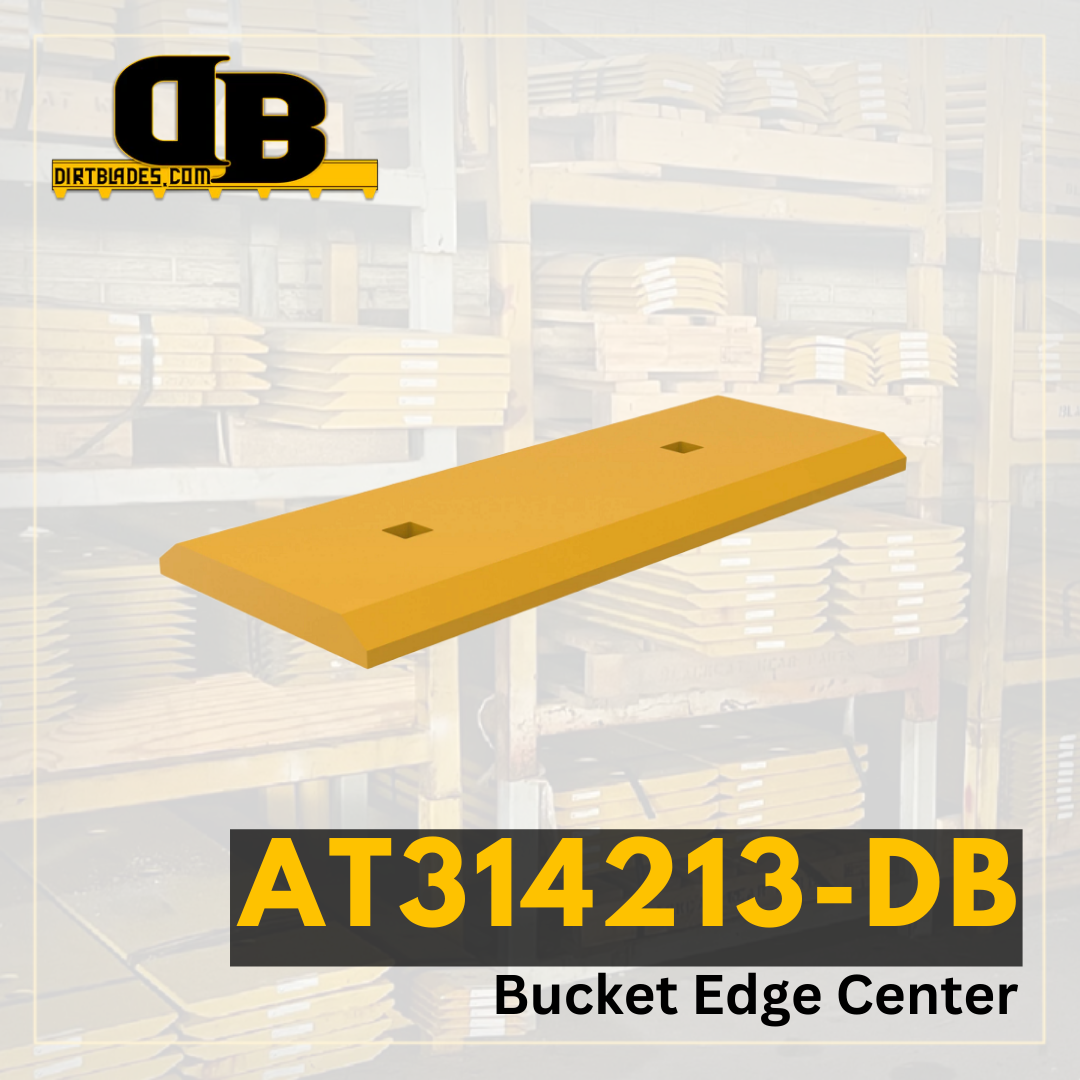

Bolt-on cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.
| Model Number | 651 657 |
|---|---|
| Series Number | E F |
| Configuration | |
| Serial Number | 7KR 6PR 5KR 86Z241-UP 6MB91-UP 88Z146-UP |
| Blade Position | Drop Center |
| Blade Thickness | 1.375 |
| Blade Width | 19 |
| Blade Length | 71.75 |
| Hole Quantity | 36 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 2.875 |
| Second Hole Distance From First Hole in Inches | 6 |
| Third Hole Distance From Second Hole in Inches | 6 |
| Bolt Quantity for First Row of Holes | 12 |
| Bolt Length for First Row of Holes | 3.25 |
| Bolt Quantity for Second Row of Holes | 12 |
| Bolt Length for Second Row of Holes | 3.25 |
| Second Set of Holes First Hole Distance From End | 2.875 |
| Second Set of Holes Second Hole Distance From First Hole | 6 |
| Second Set of Holes Third Hole Distance From Second Hole | 6 |
