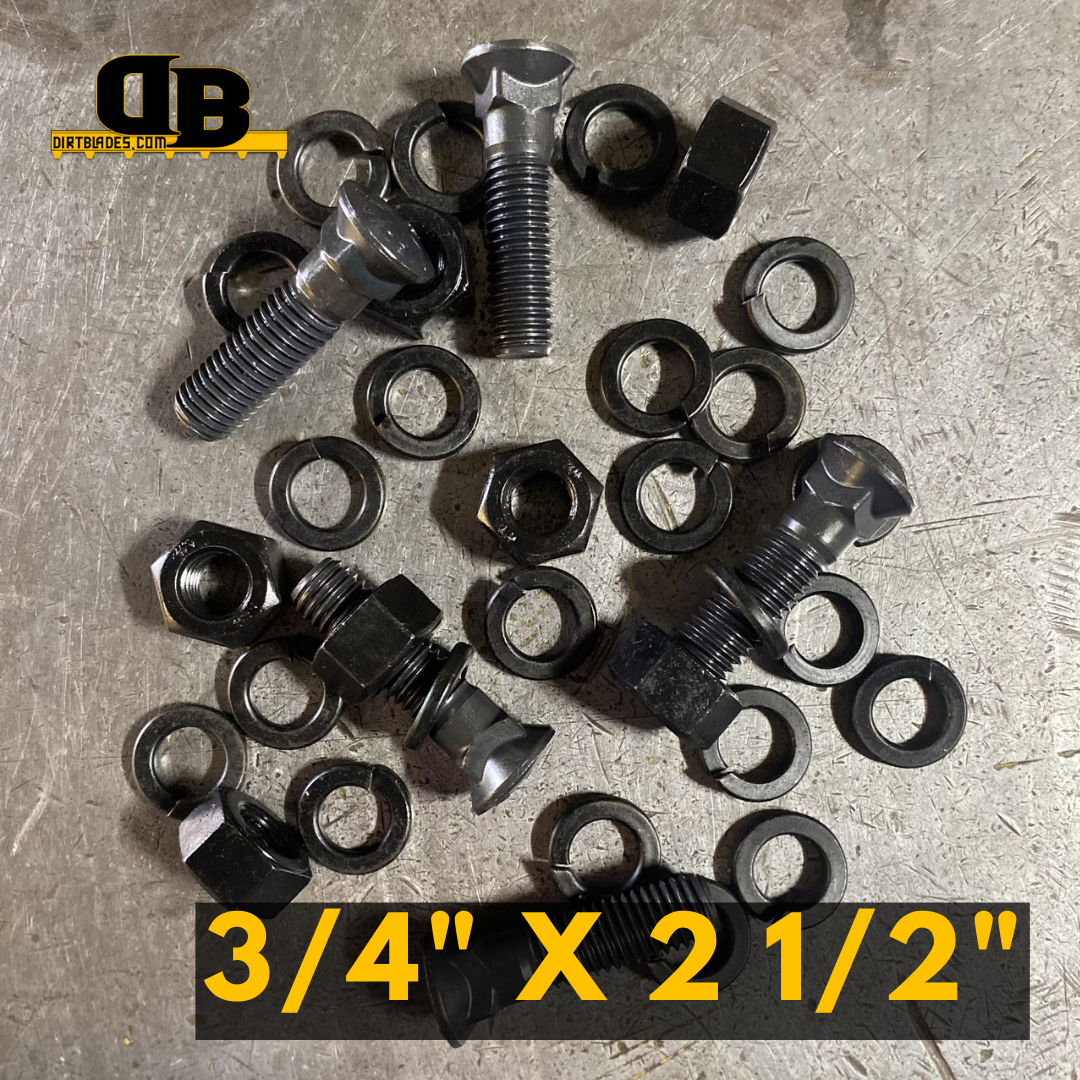

Plow Bolt, lock washer, and nut
| Model Number | L150 |
|---|---|
| Series Number | D E |
| Configuration | Light Material |
| Serial Number | 82458 82459 |
| Blade Position | Top Plate for Half Arrow Center |
| Blade Thickness | 0.75 |
| Blade Width | 8 |
| Blade Length | 34.946 |
| Hole Quantity | 5 |
| Bolt Diameter | 1.063 |
| First Hole Distance From End in Inches | 3.615 |
| Second Hole Distance From First Hole in Inches | 5.059 |
| Third Hole Distance From Second Hole in Inches | 8.799 |
| Bolt Quantity for First Row of Holes | 5 |
| Bolt Length for First Row of Holes | 4.25 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
