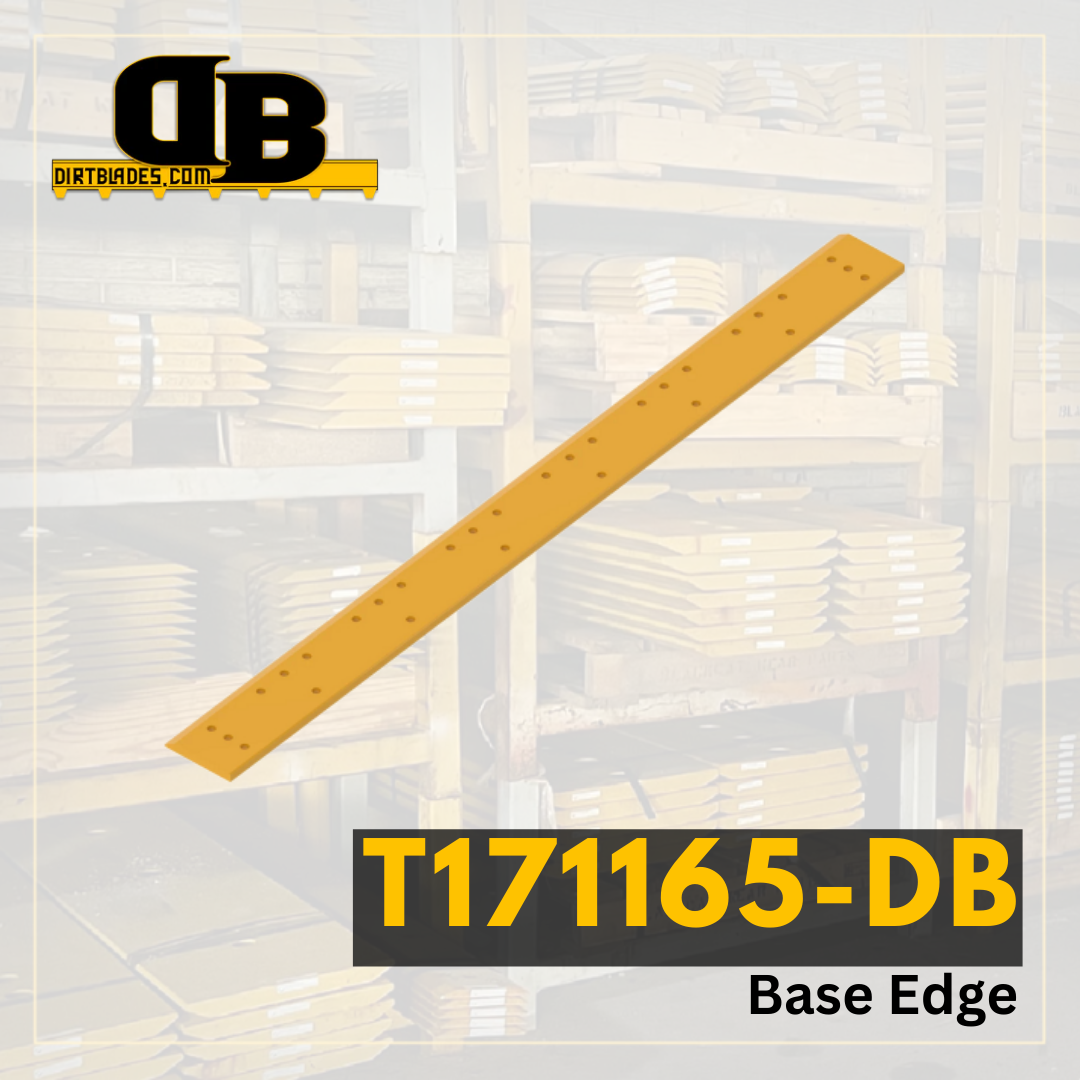

Base Edges are the ultimate solution for heavy equipment performance. Made from high-quality materials, they provide exceptional durability and performance in tough conditions. Their precise engineering ensures a perfect fit on a wide range of equipment models, maximizing productivity and uptime. Invest in our products today for unmatched reliability and performance that will take your operations to the next level!
Model Number | 644 |
---|---|
Series Number | H J |
Configuration | General Purpose |
Serial Number | 4.3/4.5YD BUCKET |
Blade Position | Base Edge With Segment Holes |
Blade Thickness | 1.25 |
Blade Width | 10 |
Blade Length | 119.685 |
Hole Quantity | 30 |
Bolt Diameter | 1.125 |
First Hole Distance From End in Inches | 4.862 |
Second Hole Distance From First Hole in Inches | 8.728 |
Third Hole Distance From Second Hole in Inches | 4.201 |
Bolt Quantity for First Row of Holes | 0 |
Bolt Length for First Row of Holes | 0 |
Bolt Quantity for Second Row of Holes | 0 |
Bolt Length for Second Row of Holes | 0 |
Second Set of Holes First Hole Distance From End | 4.862 |
Second Set of Holes Second Hole Distance From First Hole | 109.961 |
Second Set of Holes Third Hole Distance From Second Hole | 0 |
