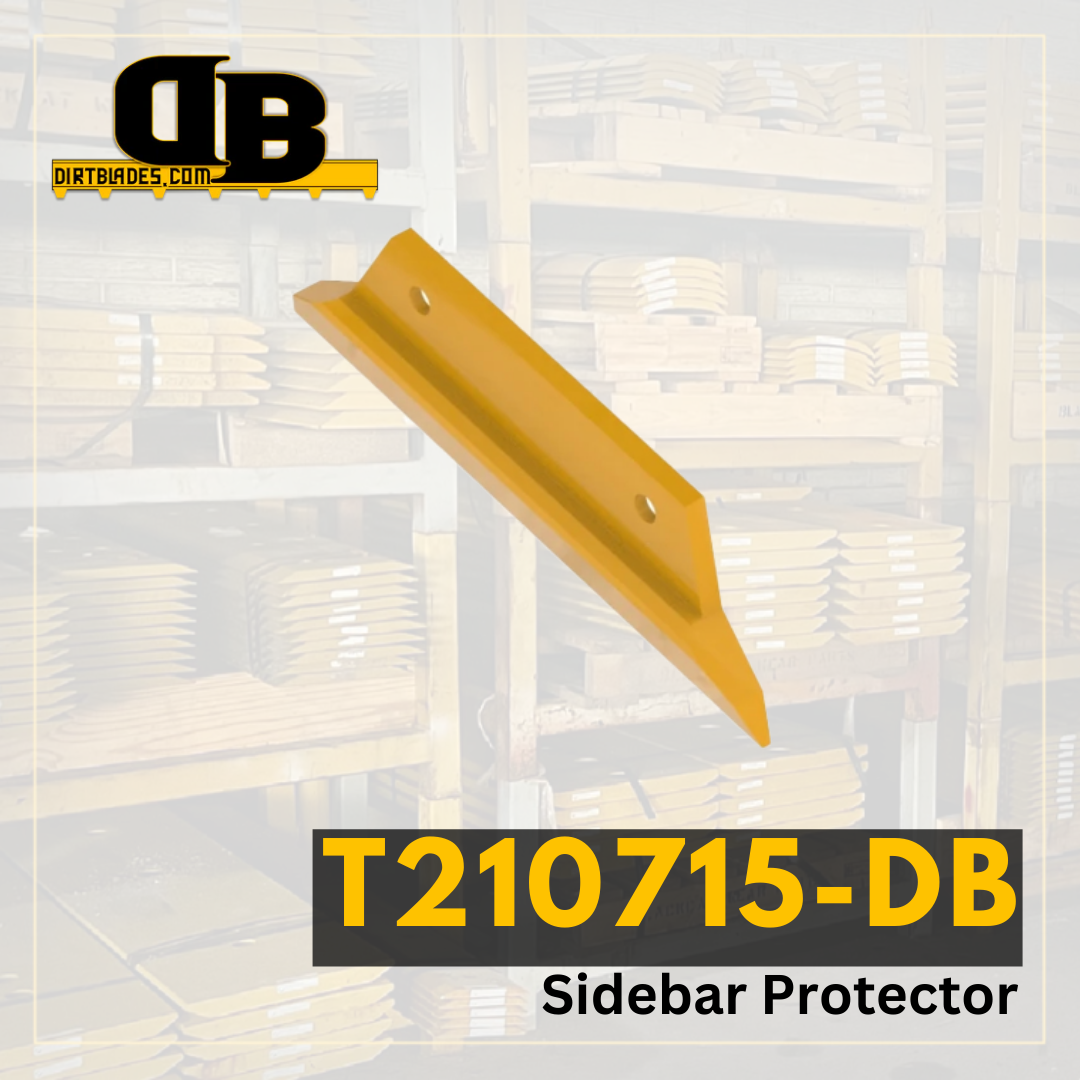

Sidebar Protectors are Side-Pin, replaceable wear surfaces to protect bucket’s structural integrity and enhance penetration with sidebars and shear blocks. Shear block protects the pin from extreme loads and breakage, helping ensure sidebar protector retention and increase your uptime. Sidebar protectors protect the bucket edge and cut your maintenance costs.
| Model Number | 350 |
|---|---|
| Series Number | |
| Configuration | Angle Tilt |
| Serial Number | 104" |
| Blade Position | Level Cut End Bit LH/RH |
| Blade Thickness | 0.5 |
| Blade Width | 6 |
| Blade Length | 19.875 |
| Hole Quantity | 4 |
| Bolt Diameter | 0.5 |
| First Hole Distance From End in Inches | 1.938 |
| Second Hole Distance From First Hole in Inches | 4 |
| Third Hole Distance From Second Hole in Inches | 8 |
| Bolt Quantity for First Row of Holes | 4 |
| Bolt Length for First Row of Holes | 2 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
