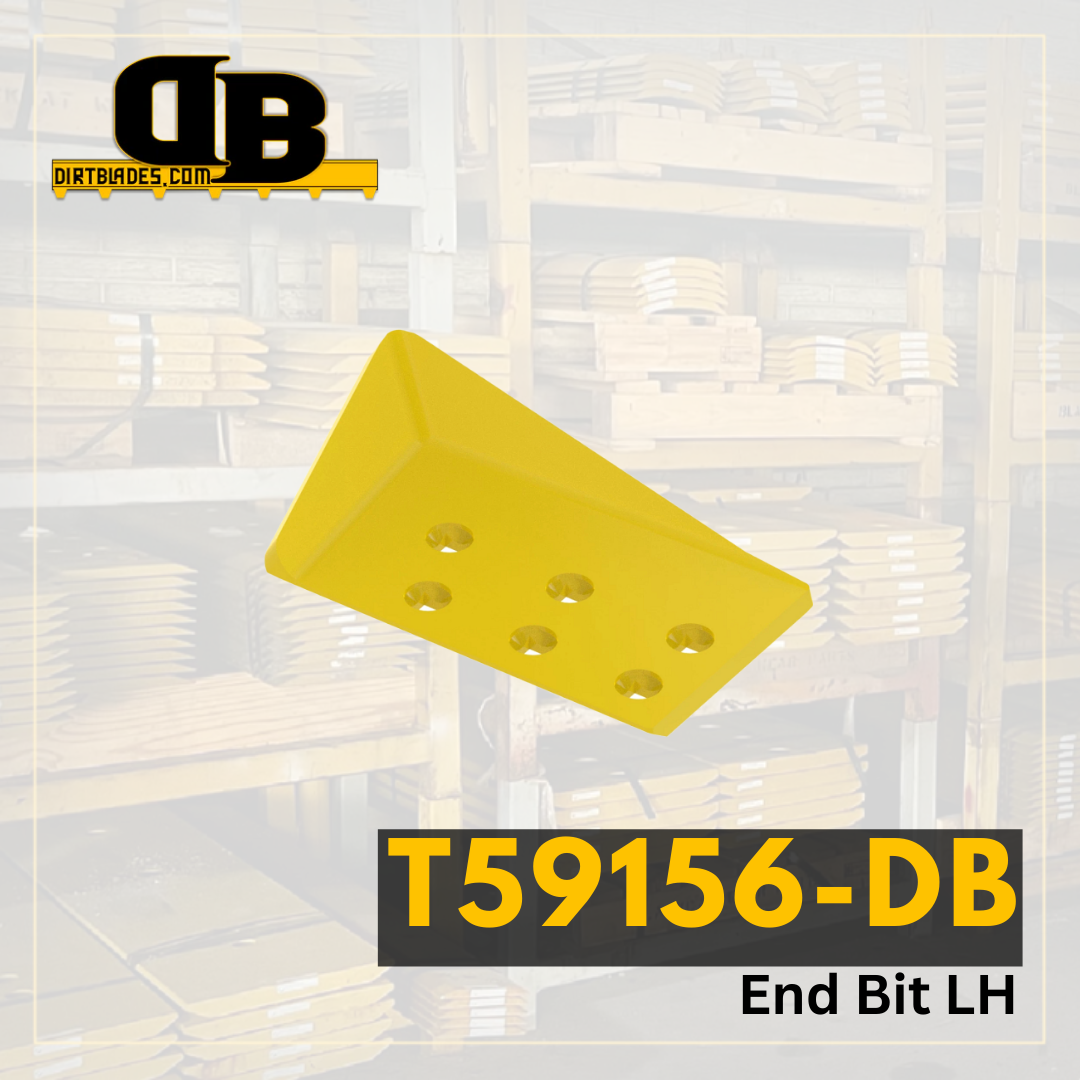

T59156 | End Bit LH

SKU: T59156

Call for pricing - 870-536-0402

OEM quality end bits are highly effective in safeguarding the blade of your machines from damage, thanks to their unparalleled manufacturing precision. These end bits are designed to balance abrasion, impact resistance, and penetration ability in the best possible way. Moreover, their contoured design facilitates the rolling of material towards the center of the blade, thereby ensuring greater load retention and capacity. This, in turn, leads to increased productivity of the machine. Specifically, general duty end bits come with a sharpened profile and sit below the leading edge of the cutting edge, making them an excellent choice for ensuring top-notch penetration.

Model Number 555
Series Number G
Configuration General Purpose
Serial Number WIDE TRACK
Blade Position Base Edge For Bolt-on Edges or Teeth
Blade Thickness 1
Blade Width 8
Blade Length 97.402
Hole Quantity 14
Bolt Diameter 0.866
First Hole Distance From End in Inches 13.358
Second Hole Distance From First Hole in Inches 11.78
Third Hole Distance From Second Hole in Inches 11.78
Bolt Quantity for First Row of Holes 0
Bolt Length for First Row of Holes 0
Bolt Quantity for Second Row of Holes 0
Bolt Length for Second Row of Holes 0
Second Set of Holes First Hole Distance From End 13.358
Second Set of Holes Second Hole Distance From First Hole 11.78
Second Set of Holes Third Hole Distance From Second Hole 11.78
